Product Description

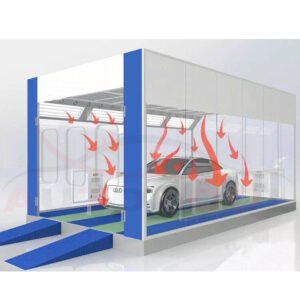

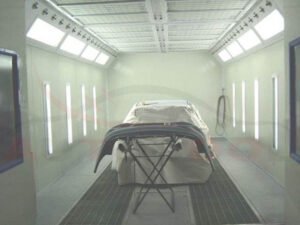

CAR PAINT SPRAY BOOTH WATER BORN PAINT SPRAY BOOTH CE CERTIFICATED
Specification:
| Outer Size: | 8200 x 5250 x 3700mm | Inside Size | 8000 x 4000 x 3000 mm (L x W x H) |
| Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates(Entire floor with grilles optional) | |
| Metal basement | 280mm height (Without basement inner floor same level with ground optional) | ||
| Drive-in Ramps | 3 Units, each size: 2000X970mm, diamond plate construction | ||
| Wall and door | Wallboard and Roof Panel | High quality double construction fireproof insulation EPS panel, thickness: 50mm(PU / Rock wool wall panel optional) | |
| 3-Folded Entrance Door With Safety Glass Window | 1 set, Entrance door made from SUS304 stainless steel, 3000×2600 mm(W x H) three folds, Luxury windows.Stronger and More durable than other normal aluminum alloy edge doors easy to be out of shape. (luxurious glass window door optional) | ||
| -Operator’s Door With Safety Glass Window | Big opening:700x2000mm (W x H),hand-made, tempering glass observation window | ||
| Light System | Ceiling Lighting | 8Units, each 4×16W, Total 512W , adopt LED Lamp | |
| Side Lighting | 8Units, each 4×16W, Total 512W , adopt LED Lamp | ||
| Brightness | ≥1000 LUX | ||
| Filtration System | Primary filters | Filtration Class G3 & Flame Resistance F-1 plate type prolonged and hardened fiber | |
| Ceiling Filters | Flame Resistance F-1 & EU5 grade high efficient filter | ||
| Bottom filter & exhaust filter | Flame Resistance F-1 &Grade G2 Fibreglass paint-stop filter add one set M-type carbon filter. | ||
| Ventilation System | Inlet fan and Outlet fan | Two sets air fans 4 kW for air-intake; one set air fans 7.5kW for air outlet, both centrifugal, One cabinet for fans + three Air ducts + one electric air dampe. (Turbine fans optional) | |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | ||
| Total fan Capacity Air flow speed in cabin | 45,000m³/h. 0.35m/s in empty booth , 0.4m/s in loaded booth | ||
| Water based paint drying system | Paint nuzzles installed 40pc on the ceiling roof of paint booth, and one set 3kw air fan, air capacity 10000m³/h. | ||
| Heating System | Heating Ex-changer | Adopt high efficient heat-resistant stainless steel as cycling heat ex-changer | |
| Heating Exchange Capacity | 160KW(180,000Kcal/H) | ||
| Burner Model | Adopt Italy RIELLO diesel burner G10(100,000kcal/h), Fuel consumption 4.5~10.5kg/h.(Gas burner FS20 optional) | ||
| Heating time | 6-8minutes (from20 to 60º under baking status, max baking temperature is 80° | ||
| Control Board | Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication | |
| Total power | 19.5 KW | ||
| Voltage | 380V/ 3PH/ 50HZ (Can be customized) | ||
Note: Due to product improvements design, specifications are subject to change without notice.
