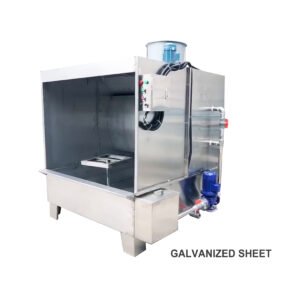

Water Curtain Paint Spray Booth
Application
Water curtain spray booths are built for health and safety codes in painting factory, which effectively arrests the overspray and creates clean air for shop. Water curtain booth is ideal for continuous or high volume painting that need a uniform airflow, it can handle significantly more overspray compared to dry filter booth.
Working Principle
During painting, overspray paint is directly dropped in the water pool area or scrubbed by water curtain wall, while air containing ordor and suspend paint particles will be filtered through water curtain ensure that only clean air is exhausted. Water wash spray booth builds clean and healthy painting environment, as well as provides a smooth and bright surface finish.

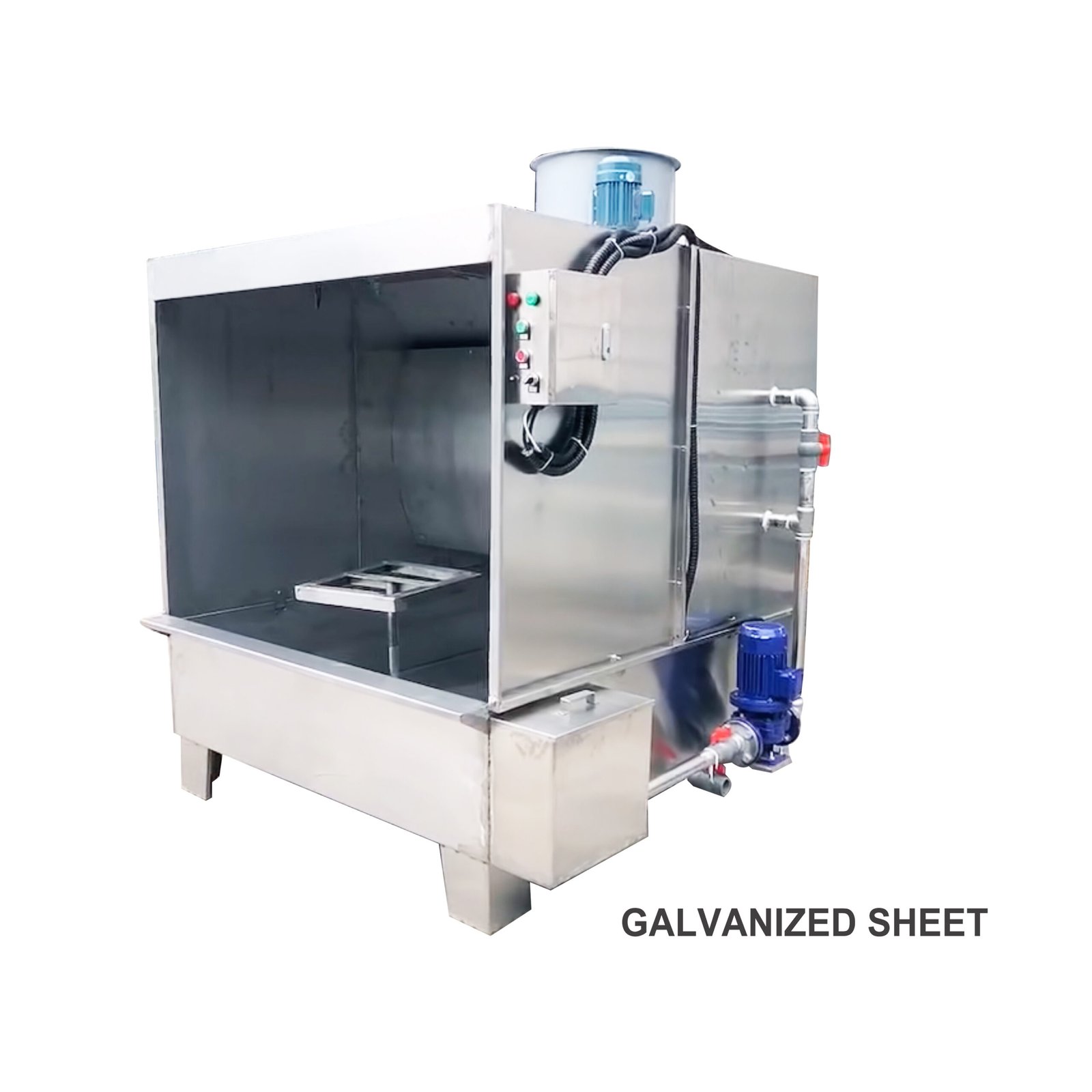

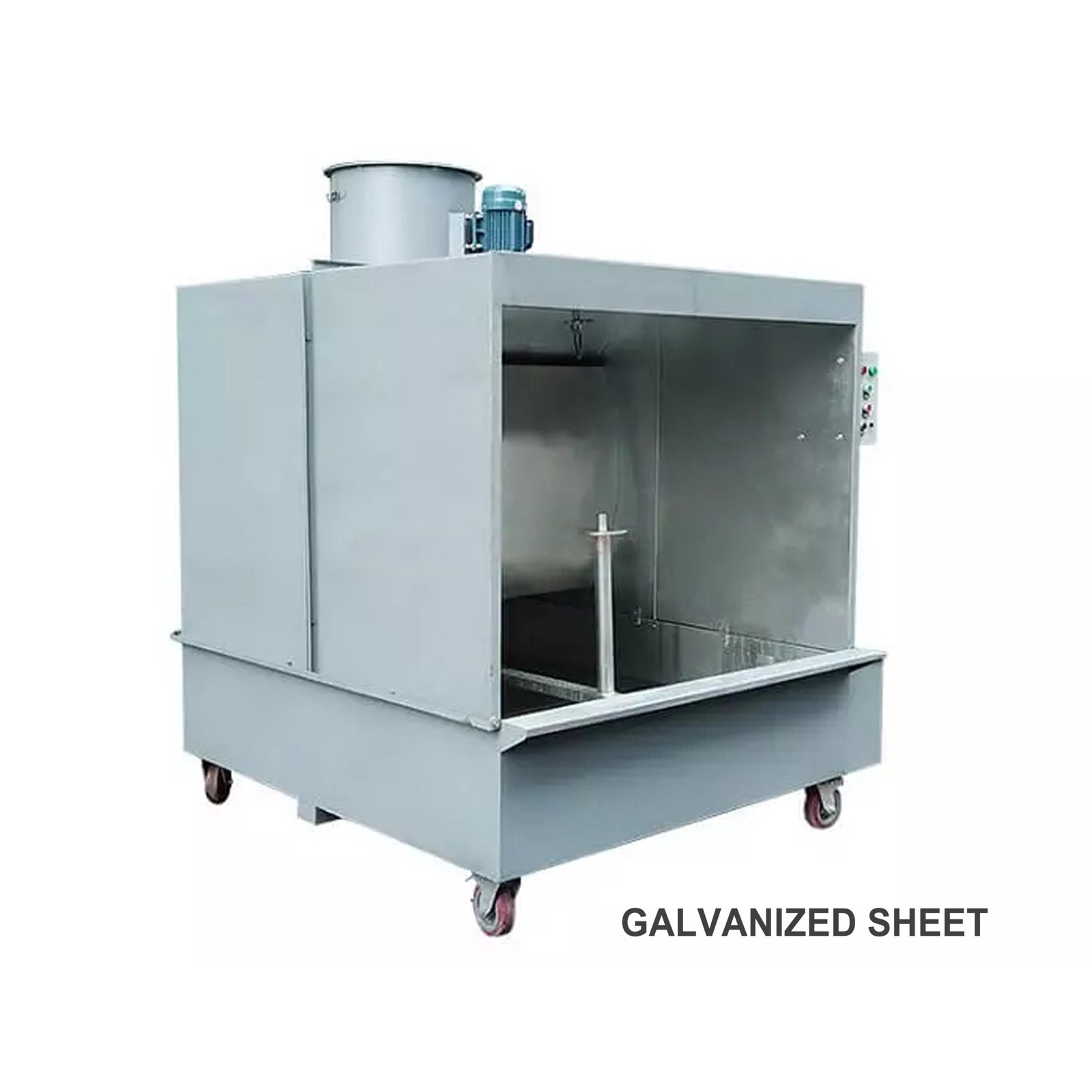

Water Curtain Spray Booth Configurations & Features
- Full width stainless steel water curtain wall, durable and anti-rust.
- Self-suction water pump with a filtration mesh for protection.
- An centrifugal axial flow fan provides sufficient air flow with low noise
- Maintain constant uniform airflow in the booth due to constant static pressure
- Water can be reused again and again for the booth without discarding the water.
- Turntable or hanger can be customer made to easily loading the workparts.
Water Curtain Spray Booth Standard Models & Specifications
| Model | WPS-800 | WPS-1200 | WPS-1500 |
| Water Curtain Panel Width (mm) | 800 | 1200 | 1500 |
| Fan Air Flow m^2/h | 4000*1 | 7500*1 | 8000*1 |
| Fan Motor Power (kw) | 0.37*1 | 0.75*1 | 0.75*1 |
| Water Pump Power (kw) | 0.37*1 | 0.55*1 | 0.55*1 |
| Packing Size (L*W*H) | 1×1.2×2.1m | 1.4×1.8×2.3m | 1.7×1.8×2.3m |
| Booth Weight | 300kgs | 450kgs | 500kgs |
| Model | WPS-2000 | WPS-3000 | WPS-4000 |
| Water Curtain Panel Width (mm) | 2000 | 3000 | 4000 |
| Fan Air Flow m^2/h | 22000*1 | 18000*2 | 18000*2 |
| Fan Motor Power (kw) | 1.5*1 | 1.5*2 | 2.2*2 |
| Water Pump Power (kw) | 0.55*1 | 0.75*1 | 1.5*1 |
| Packing Size (L*W*H) | 2.2×1.8×2.3m | 3.2×1.8×2.3m | 4.3×1.8×2.3m |
| Booth Weight | 580kgs | 990kgs | 1050kgs |
Other sizes or special requirements pls contact with us!
