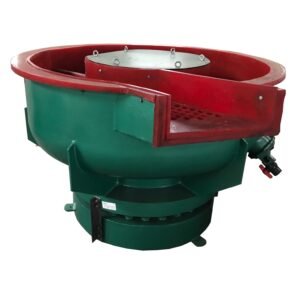

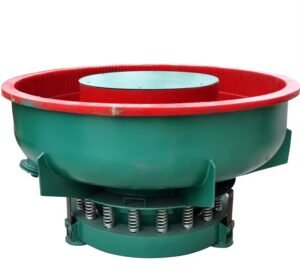

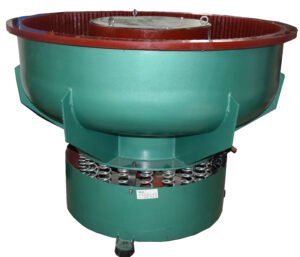

650L Vibratory Polishing Machine, Large Vibratory Bowl Polisher
Driven by a vibration motor, the mixture of polishing media and compounds constantly contacts the part’s surface, their mutual friction attain the purpose of all kinds of polishing, deburring, cleaning treatments.
Vibratory bowl type polishing machine allows batch processing of small-to-medium sized parts, it creates thorough entire finish as well as maintain the original accuracy, perfect for metal and non-metal parts, whether irregular shaped or fragile.
Vibratory Polishing Machine Features
Size of screen holes can be designed according to meet with customers’ parts and medias
The spiral bottom design of the vibratory polishing machine is better for discharging and separating
Special 3 phase vibration motor, high performance, stable and reliable running
Polyurethane lining of the inner chamber reduces the impact to parts and avoid the noises.
650L capacity bowl is capable for polishing large quantities of products in different shapes.
1. Suitable for batch processing of complex small and medium-sized workpieces, enhance efficiency 6-10 times.
2. Remove the burrs, scale, oil, flash, rough throw, fine finish of workpiece surface, achieves perfect and uniform effect.
3 Since the loading is moving as a unit, it does not destroy the original size and shape of the parts, quite safe for sensitive parts
4. Strong amplitude and high cutting force makes efficienct polishing process, reach any corners and concavities of the pars.
5. Different capacity of vibratory polisher can be chosen. Frequency variable, time control, sound insulation functions can be customized to optimize the processing.
Vibratory Polishing Machine Specifications
Vibratory Polishing Machine Application
Viboratory polishing machine mainly used in deburring, polishing, chamferring, descaling, cleaning for bicycles, aluminum die casting, zinc die casting, furniture hardware accessories, kitchen accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches andclocks accessories, locks, electronic accessories, all kinds of jewelry and powder metallurgy, resins.

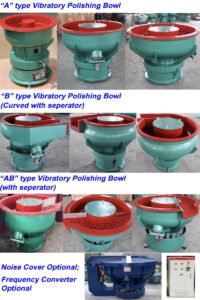

The polish finish machine with many different model to suit different workpiece size .
Model | Capacity | Motor Power | Speed | Amplitude | Machine Weight | Size |
kw | (r/min) | (mm) | kg | L*W*H(mm) | ||
SVB-40(A) | 40L | 0.55 | 1450 | 0.8-3 | 50 | 600*500*600 |
SVB-60(A) | 60L | 0.75-1.1 | 1450 | 0.8-3 | 100 | 700*640*700 |
SVB-80(A) | 80L | 1.1 | 1450 | 0.8-3 | 110 | 840*640*740 |
SVB-95(A) | 95L | 1.1 | 1450 | 0.8-3 | 120 | 860*800*750 |
SVB-150(A) | 150L | 2.2-3.0 | 1450 | 0.8-4 | 240 | 1150*1050*900 |
SVB-250(A) | 250L | 3 | 1450 | 0.8-6 | 280 | 1150*1100*900 |
SVB-350(A) | 350L | 5.5 | 1450 | 0.8-6 | 450 | 1450*1350*1050 |
SVB-450(A) | 450L | 5.5 | 1450 | 0.8-6 | 530 | 1550*1430*1050 |
SVB-650(A) | 650L | 7.5 | 1450 | 0.8-8 | 1250 | 1900*1850*1300 |
