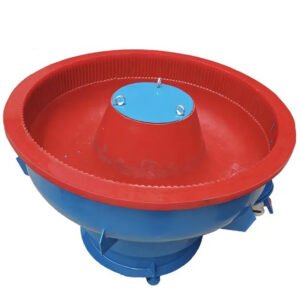

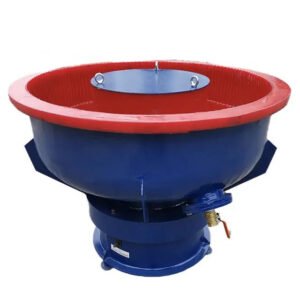

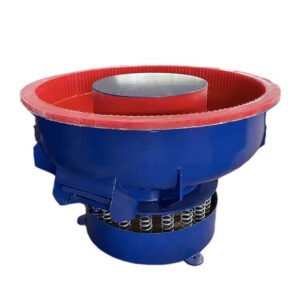

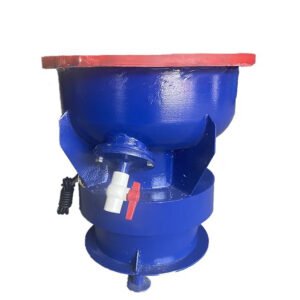

95L Vibratory Polisher Machine, Tumbler Polishing Bowl
Vibratory tumbler polishers use the friction principle through vibration to rub the media against the parts that creates the desired result, as well as employ chemical compound or agent to lubricate, clean and facilitate this process. Such processing reaches the purpose of removing edges and burrs, cleaning rust and dirt, or polishing to get bright surface, all finishes can be achieved with using different media.
Vibratory Polisher Machine Standard Configurations
- Full PU lining chamber, minimize the impact to parts and media, also extends bowl life.
- Round open bowl design allows random inspection during polishing and deburring machine,
- Heavy-duty bowl base, iron casting body with coated surface, sturdy and durable
- With Discharging chute for to easily empty medias and compounds.
- 3 Phase vibration motor provides sufficient grinding force, makes entire and thorough finish.
- Hot-selling 95L capacity meets most productivity, mass finishing to small to medium sized parts.
Vibratory Polisher Machine Advanced Configurations
1) Fit an internal parts separation device achieves 100% parts discharging without additional labor efforts. During processing cycle, media falls back to the container through the holes of the screen separator and the parts automatically discharged from the tumbler. This is an excellent feature especially for large volume tumblers.
2) Custom an electric controller to realize speed and amplitube adjustable of the vibratory motor, in order to get precise finish for different finishing purpose, thus each kinds of workparts will obtain optimal results.
Vibratory Polisher Machine Advantages
Vibratory polisher tumbler is widely used in metal or non-metal finishing industry with the superiority to operating small tolerances and high precision parts. As the load in the tumbler moves as a unit, it is safe for fragile parts without any tearing or distorting actions, even better, it gives thorough touch in corners and holes and creates perfect surfaces for irregular objects. Deburring tumblers release manpower and ensure quality consistency as each parts will get equal cutting force
SVB-95A Vibratory Polisher Machine Specifications
| Model | SVB-95A |
| Voltage | 230V/380V/440V, 50Hz/60Hz, 3 Phase |
| Motor Power: | 1.1kw |
| Capacity: | 95L |
| Size: | 860*800*750L |
| Speed: | 1450 r/min |
| Estimated weight: | 120kgs |
| Standard Configuration | All PU lining Steel base/stand |
| Optional Items | Media Separator Sound Enclosures Variable Frequency Time control |
Engineering Drawings
Product Paramenters
Mode | Total Volume（L） | Max Overall Dimension A(mm) | Motor Installation Tube C(mm) | Process Bowl Width ΦD(mm) | Tunnel Depth H2(mm) | Machine Height H1(mm) | Motor (kw) | Weight (kg) |
SVB-40A | 30 | 500 | 80 | 165 | 190 | 620 | 0.55 | 50 |
SVB-60A | 60 | 640 | 140 | 200 | 240 | 700 | 0.75 | 85 |
SVB-80A | 80 | 780 | 200 | 220 | 250 | 700 | 1.1 | 100 |
SVB-150A | 150 | 1030 | 450 | 230 | 300 | 810 | 1.5/2.2 | 250 |
SVB-200A | 200 | 1180 | 520 | 280 | 340 | 850 | 2.2/3.0 | 300 |
SVB-300A | 300 | 1340 | 610 | 290 | 360 | 910 | 3.7/5.0 | 500 |
SVB-400A | 400 | 1450 | 610 | 340 | 400 | 910 | 3.7/5.0 | 600 |
SVB-600A | 600 | 1850 | 910 | 400 | 480 | 1150 | 5.5/7.5 | 1200 |
SVB-900A | 900 | 1950 | 610 | 560 | 550 | 1350 | 9.0 | 1800 |
SVB-1200A | 1200 | 2150 | 860 | 550 | 560 | 1400 | 11.0 | 2300 |
SVB-1500A | 1500 | 2340 | 860 | 640 | 650 | 1450 | 15.0 | 3100 |
