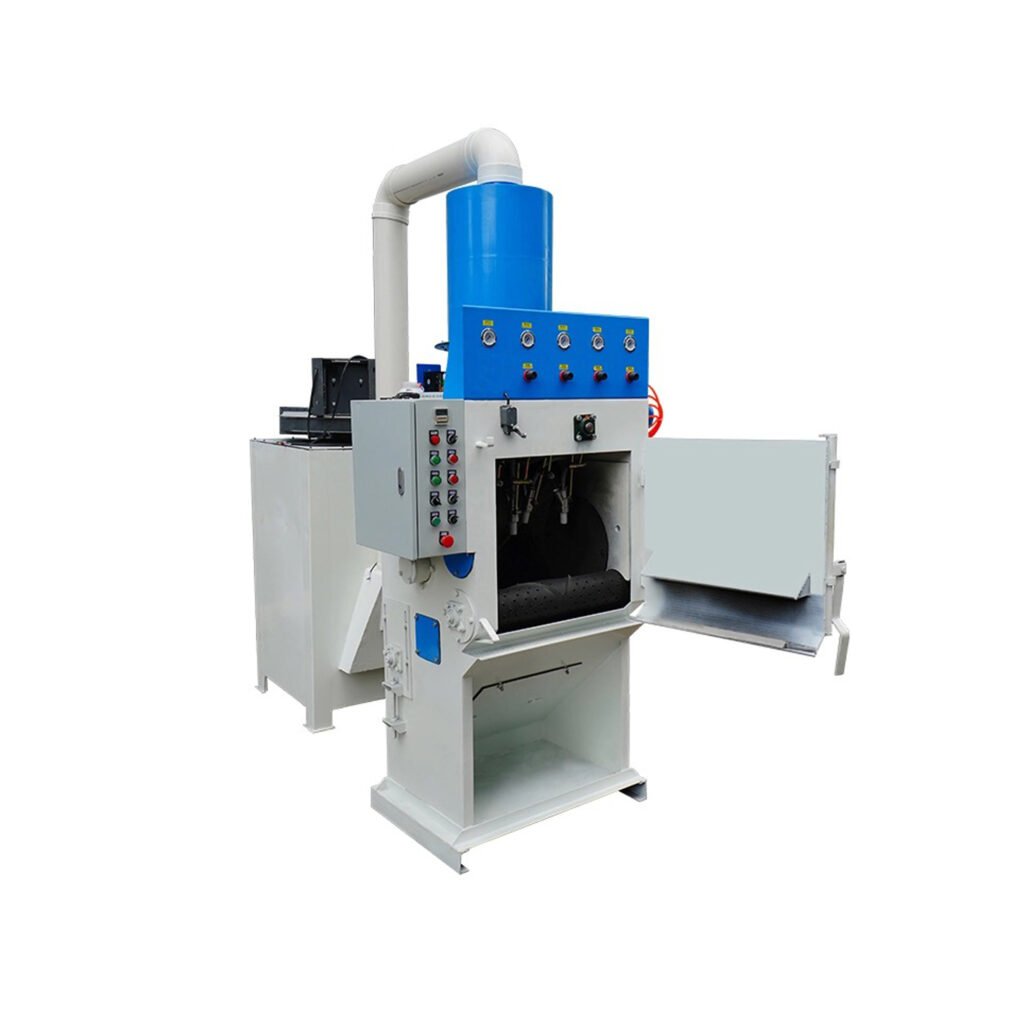

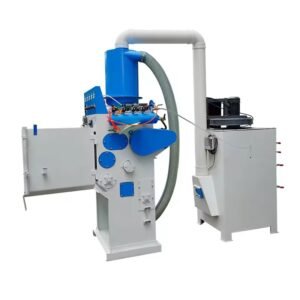

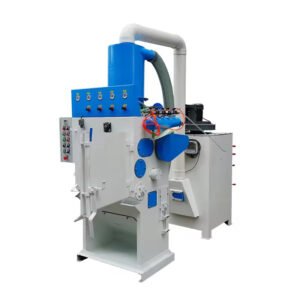

Tumble Belt Automatic Sand Blasting Machine
Tumble belt automatic sandblasting machine deliver efficient, affordable batch processing to automate the cleaning, and finishing of workpieces varying in size. The endless rubber belt keeps parts gently tumbling as they are exposed to blast streams on all surfaces.
This system is ideal for batch processing a set of small pieces at once, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional sandblast cabinet.
Processes several pieces at a time (batch cycle), simplifies the surface treatment of small, hard-to-hold pieces. Rubber belt ensures a gentle tumbling motion on delicate parts.
Parts tumble on a thick, perforated rubber belt, a group of blast guns uniformly blast medias to all exposed surfaces to deliver a consistent finish automatically.
Technical Data | |
Model | SBA-800 |
Cabinet outsize: | L800*W650*H2720 (mm) |
Dust collector dimensions: | L800*W800*H2100mm |
Productivity: | 0.3-0.5 T/H |
Rolling motor power: | 1.5KW |
Load capacity: | ≤100KGS |
Dust collection motor power: | 2.2KW |
Automatic blasting gun: | 4pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Qty of Blast Guns | 8 pcs |
Blast Gun Nozzle | Durable Boron Carbide |
Power Supply | 380V/220V As required |
Voltage: | 380V 50HZ |
The tumble belt sand blasting machines are used for surface cleaning of cast, pressed, heat treated, forged, etc. products without sharp corners and suitable for rounding. Ability to sandblast small and medium sized parts is the significant advantage.
