Product Description

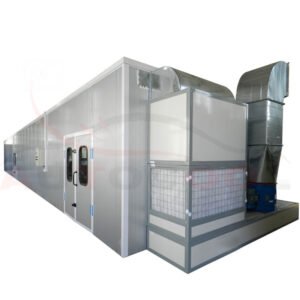

FURNITURE SPRAY BOOTH PAINT CHARMBER DRYING ROOM CE CERTIFICATED
Project | SPF-100 |
Outside Dimension | 20000×5000×3000mm(L×W×H) |
Painting Room Dimension | 4900×4900mm(L×W) |
Drying Room Dimension | 14950×4900mm(L×W) |
Incoming Door Dimension | 1900×2000m((W×H) |
Wall panel and ceiling panel | EPS colorful Steel Skin Boards, tongue and groove construction, thickness: 50mm , compound construction, aluminum-alloy Frame. Anti-flame and heat-Insulation. Basement in front of water curtain: 30mm*4mm flat iron grilles, 12#channel steel. |
Light System | Painting room: 6units×3 pieces=18pieces×36W Philips lamp; Baking room: 12pieces×36W Philips lamp, anti-explosive. Illuminance exceeding 450LUX |
Upper intake air. Inlet fan | 2×4KW double-intake centrifugal fans, air capacity: 24000m³/h. |
Heating System | Infrared Heating Tubes: 30 pieces ×1 KW carbon fiber far-infrared heater, anti-explosion. |
Purification System | Dual filtering structure. The primary filter can capture granules larger than 10µm. Ceiling filter captures granules bigger than 4µm. Its filter rate reaches 98%. TSP ≤1.4mg/m3 |
Controlling System | Electric Controlling System: lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply |
Total Power | 39.08KW |
Note: Due to product improvements design, specifications are subject to change without notice.
