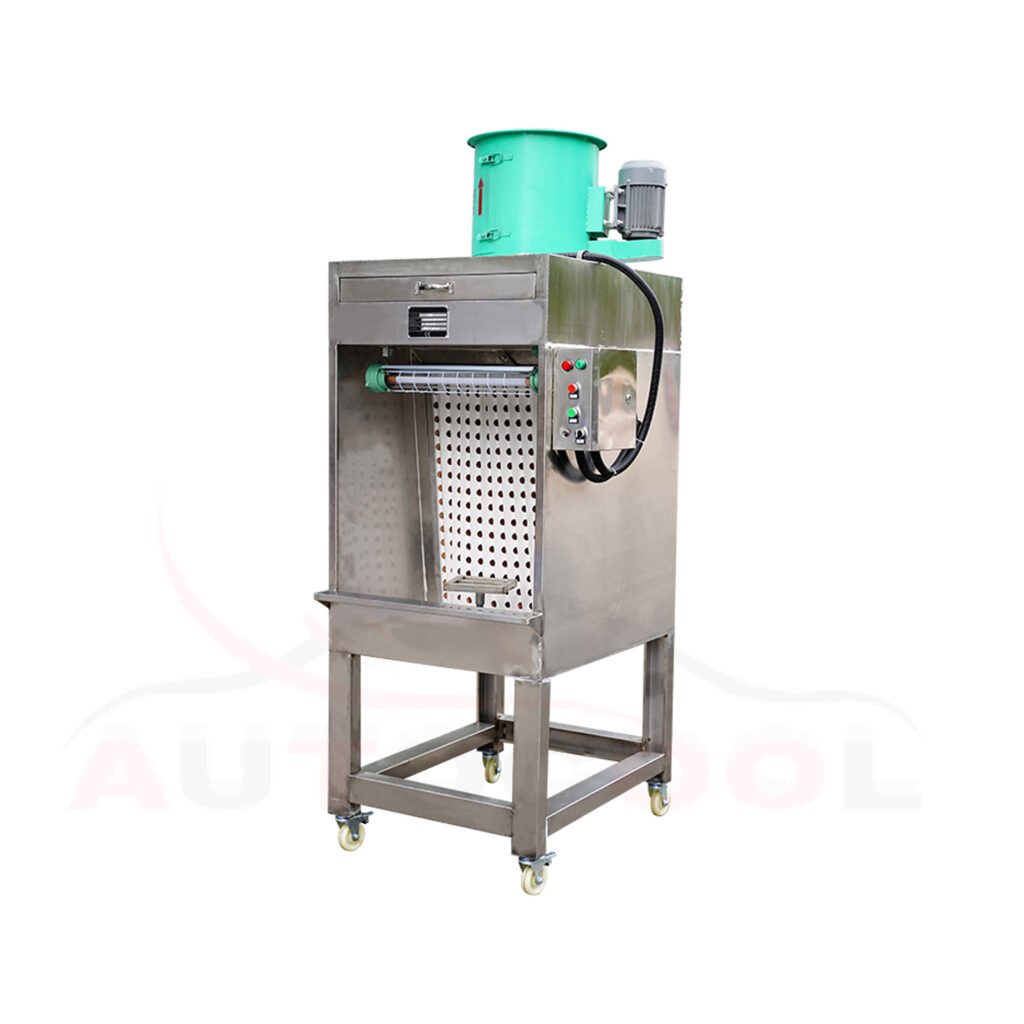

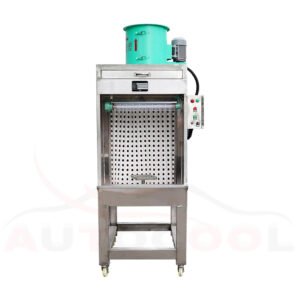

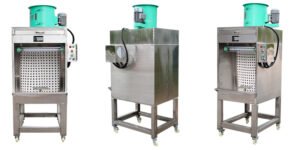

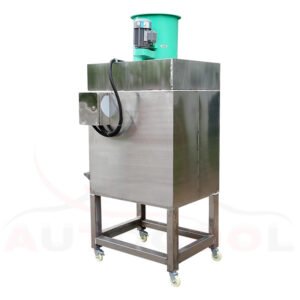

Side Draft Dry Type Paint Booths
spray booth is an enclosed workstation designed for the spray paint overspray, The system filters overspray using a paint arrestance prefilter to protect operators. Common applications included .spray painting.
Specification
| Cabinet System | Wallboard is made by steel sheet powder coated |
| Exhaust Air System | 1×0.75kw pipe explosion-proof axial flow fan for exhaust air. |
| Control System | Power switch,emergency switch, light switch,fan switch |
| Filter System | Paper filter,glass wool filter |
Spray Paint Booth Main Features
Lower operating and maintenance costs than water filtration systems
Lower initial booth capital equipment costs and installation as compared to a water wash booth
Ease of operation as compared to a water wash booth
Reclaim systems are available to recycle powder coating finish, for example
All can result in a significant impact on the profitability of the production environment..
Dry Type Liquid Painting Room/ Liquid Painting Spray Booth configurations
Model No | Width (mm) | Fan Motor (KW) | Fan Motor Air Flow (m3/h) | External size (L*W*H mm) | Weight (kgs) |
DPS-800 | 800 | 0.37 | 2880 | 3700*1500*2500 | 200 |
DPS-1000 | 1000 | 0.75 | 5500 | 3700*1500*2500 | 250 |
DPS-1200 | 1200 | 0.75 | 6500 | 1400*1500*2300 | 350 |
DPS-1500 | 1500 | 0.75 | 7000 | 1700*1500*2300 | 400 |
DPS-2000 | 2000 | 1.5 | 22000 | 2200*1500*2300 | 480 |
DPS-2500 | 2500 | 2.2 | 22000 | 2700*1500*2300 | 530 |
DPS-3000 | 3000 | 1.5*2 | 18000*2 | 3200*1500*2300 | 570 |
DPS-3500 | 3500 | 1.5*2 | 18000*2 | 3700*1500*2500 | 790 |
DPS-4000 | 4000 | 2.2*2 | 18000*2 | 4300*1500*2500 | 850 |
DPS-4500 | 4500 | 3.0*3 | 18000*3 | 4800*1500*2500 | 970 |
DPS-5000 | 5000 | 5.5*2 | 18000*2 | 5200*1500*2500 | 1040 |
DPS-5500 | 5500 | 5.5*2 | 18000*2 | 5700*1500*2500 | 1100 |
DPS-6000 | 6000 | 5.5*3 | 18000*3 | 6300*1500*2500 | 1170 |
