SLX-3500

  • Lifting capacity: 3500kg
  • Lifting Height: 1850mm
  • Power Supply: AC220V/ 230V/ 380V/ 400V, 50HZ
  • Product description: Used for Vehicle display, vehicle modification, quick repair and maintenance, car wash beauty, tire replacement … save space! high quality CE approved.

Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

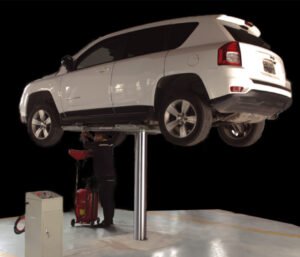

Single post car lift with X type arms, CE certificate.

Features:

Hydraulic oil consumption 8L — energy saving

The bottom of the vehicle is an open space — efficient and convenient

Built-in safety lock or explosion-proof valve — safe and stable

The host is underground, the support arm is flush with the ground — saving store space

Anticorrosion and waterproof treatment of the surface of the host and the support arm — indoor and outdoor, flexible installation

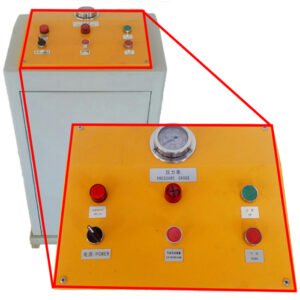

External electro-hydraulic control system — stable lifting, accurate landing, easy maintenance

Vertical movement of oil cylinder, using international brand seals — good sealing performance and long service life

Lifting column and cylinder piston rod are made of high-quality alloy steel and hard chrome-plated surface — solid and durable

Specification:
Lifting capacity3500kg
Load unevennessup to 6:4 in the front-rear of vehicle
Maximum lifting height1850mm
Lifting (falling) time40-60 seconds
Voltage(V)AC220 / 380/50; AC230 / 400V / 50Hz
Motor power2.2kw
Motor speed2850 rpm
Displacement of oil pump2.0ml / rev
Set pressure of relief valve18MPa
Air source pressure0.6-0.8MPa
Electromagnetic pressure relief valveAc220V / 50Hz
Net weight700KG
Host length490mm
Host width490mm
Height2514mm
Noise level (measured at console)≤75dBA
