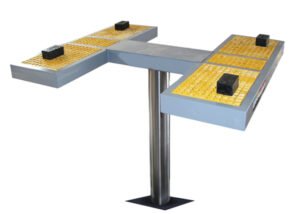

Single post car lift with H type arms, CE certificate.
Features:
Hydraulic oil consumption 8L — energy saving
The bottom of the vehicle is an open space — efficient and convenient
Built-in safety lock or explosion-proof valve — safe and stable

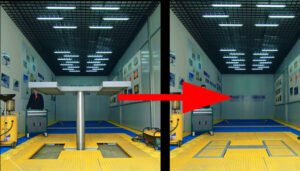

The host is underground, the support arm is flush with the ground — saving store space
Anticorrosion and waterproof treatment of the surface of the host and the support arm — indoor and outdoor, flexible installation
External electro-hydraulic control system — stable lifting, accurate landing, easy maintenance
Vertical movement of oil cylinder, using international brand seals — good sealing performance and long service life
Lifting column and cylinder piston rod are made of high-quality alloy steel and hard chrome-plated surface — solid and durable
Specification: | |
Lifting capacity | 3500kg |
Load unevenness | up to 6:4 in the front-rear of vehicle |
Maximum lifting height | 1850mm |
Lifting (falling) time | 40-60 seconds |
Voltage(V) | AC220 / 380/50; AC230 / 400V / 50Hz |
Motor power | 2.2kw |
Motor speed | 2850 rpm |
Displacement of oil pump | 2.0ml / rev |
Set pressure of relief valve | 18MPa |
Air source pressure | 0.6-0.8MPa |
Electromagnetic pressure relief valve | Ac220V / 50Hz |
Net weight | 700KG |
Host length | 490mm |
Host width | 490mm |
Height | 2514mm |
Noise level (measured at console) | ≤75dBA |
