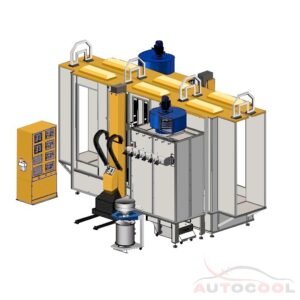

Single Color Automatic Powder Coating Booth System

It is an ideal solution for single color application in automatic powder coating line, including an filter powder booth, reciprocators, automatic spray gun systems, and a powder sieving machine for recyling. Cost-saving booth system achieve quality surface finish with high powder recycling rate.

Filter Type Automatic Powder Booth Features

1. 0.1micron high precision filters effectively capture oversprayed powders, thus only particle-free air discharged outside.

2. Pulse-jet automatic filter cleaning technology takes full utilization of powders and extent filter life for many years.

3. The powder booth bottom is specially designed with air cleaning device ensures no powder accumulation at the bottom.

4. All functions, parameters can be flexiblely controlled on the PLC panel, such as fan start, filter cleaning, booth cleaning.

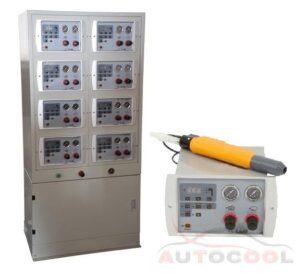

Automatic Powder Coating Gun System

1. A central control cabinet combines the gun controller for easy operation

2. The 100kv spray gun powerfully charge powders increasy coating efficiency.

3. Each Intelligent controller allows accurate setting of processing paramters.

4. Based on COLORSONG 10 years technology, reliable system with minimum maintenance.

Powder Coating Reicprocator

1. Increasy uniformity and quality consistancy, reduce powder consumption.

2. With high stability to carry up a certain quality of spray guns for smooth and gentle motion

3. Moving stroke and speed can be adjustable on the digital screen, which allows to store 80 working programs

4. Robust, reliable, and easy to maintain reicporcator with space saving design.

Automatic Powder Sieving Machine

1. Recycling the powder coatings with the capacity of 80-100kgs.

2. Continuously and uniformly feed the powders to the production line

3. The collected powders are sieved by a screen section, only quality powders are recyled.

4. Hold up to 24pcs powder injectors, suitable for mass production.
