Product Description

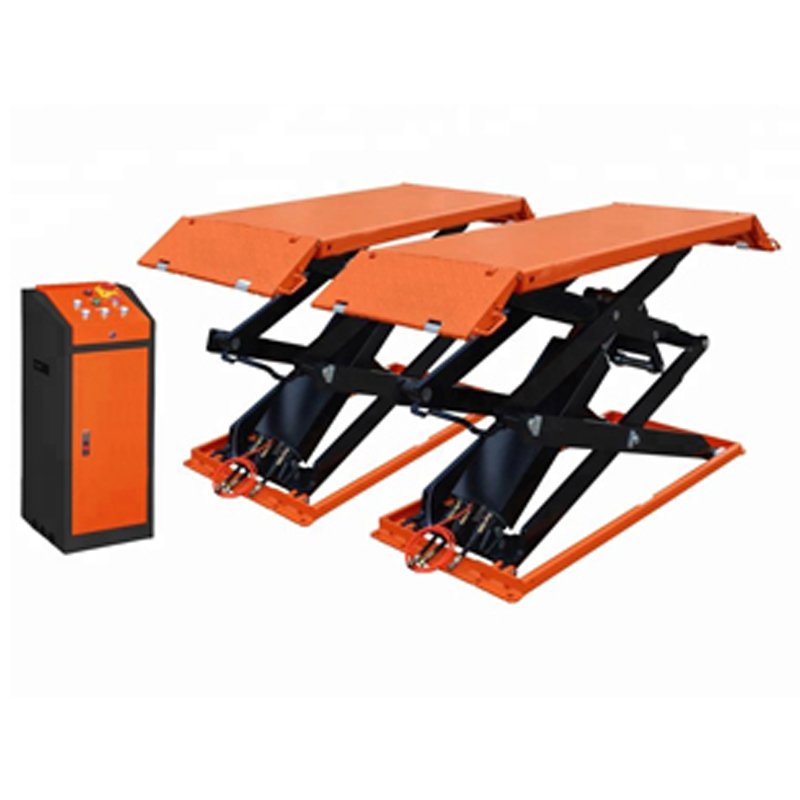

Low Profile Scissor lift ,Surface Mounting with CE
Features:
Surface mounting at minimum height of 110mm .
Mechanical safety lock engaged automatically ,with electrical release when lowering.
Extendable platform suitable for more long chassis vehicles.
All pivot joints made with self-lubrication bushing ensure long service life.
Lowering beeper as optional for CE standard.
Automatically synchronization system as optional.
| Specification: | |
| Lifting capacity | 3000kg |
| Lifting height | 1830mm |
| Min height | 110mm |
| Table length | 1450-1990mm |
| Table width | 660mm |
| Lifting time | <50s |
| Motor power | 2.2kw |
| Power Supply | 220V/380V |
