Product Description

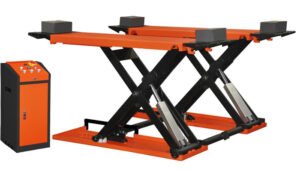

Middle Height Scissor lift ,Surface Mounting with CE

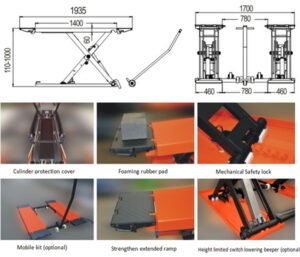

Features:
*Surface mounting at minimum height of 110mm .
*Mechanical safety lock engaged automatically ,with electrical release when lowering.
*All pivot joints made with self-lubrication bushing ensure long service life.
*Optional mobile kit for easy moving.
*Extendable platform suitable for more long chassis vehicles.
*The middle steel bar connects two platforms ensure stability and synchronization .
*Lowering beeper as optional for CE standard.
| Specification: | |
| Lifting capacity: | 3000kg |
| Lifting height: | 1000mm |
| Min height: | 110mm |
| Lifting time: | 20s |
| Lowering time: | 20s |
| Motor power: | 2.2kw |
| Power supply: | 220v/380v 1/3phase |
