Product Description

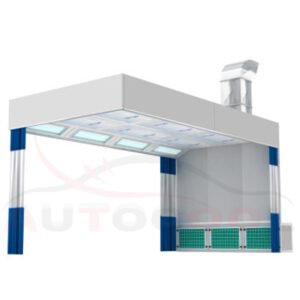

CAR PAINT PAINT PREP STATION CHAMBER CE CERTIFICATED
| Model: | PPS-3 |
| Outer size(mm) | 7100×3700×3520(L*W*H) |
| Inter size(mm) | 6000×3480×2700(L*W*H) |
| Total Power | 7 kw (380V/50HZ/3ph) |
| Shipping port | Qingdao China |
Specification:
- Installation style: Steel columns supporting.
- Wall: Back – EPS foam plate 50mm thick; Front – PVC curtains,2pcs, color optional; Two sides – PVC curtains, 4pcs, color optional.
- Basement: No basement, the booth mounts on the concrete ground.
- Filter: Air-Inlet Filter – 4 pieces / set; Air-Exhaust Filter (floor) – 3 rows / set.
- Air System: Fan – Centrifugal Fan x 1unit, with 5.5 KW motor; Cabinet & Air Ducts – Cabinet for the Fan x 1unit; Air Ducts x 2unit; Air Damper – Air Damper x 1unit; Air Damper Actuator x 1unit.
- Ceiling Light: 32pcs, 36w each, with Light Fixtures, anti-explosion design.
- Included: Control Panel, all Hardware, Fasteners, and Sealants.
