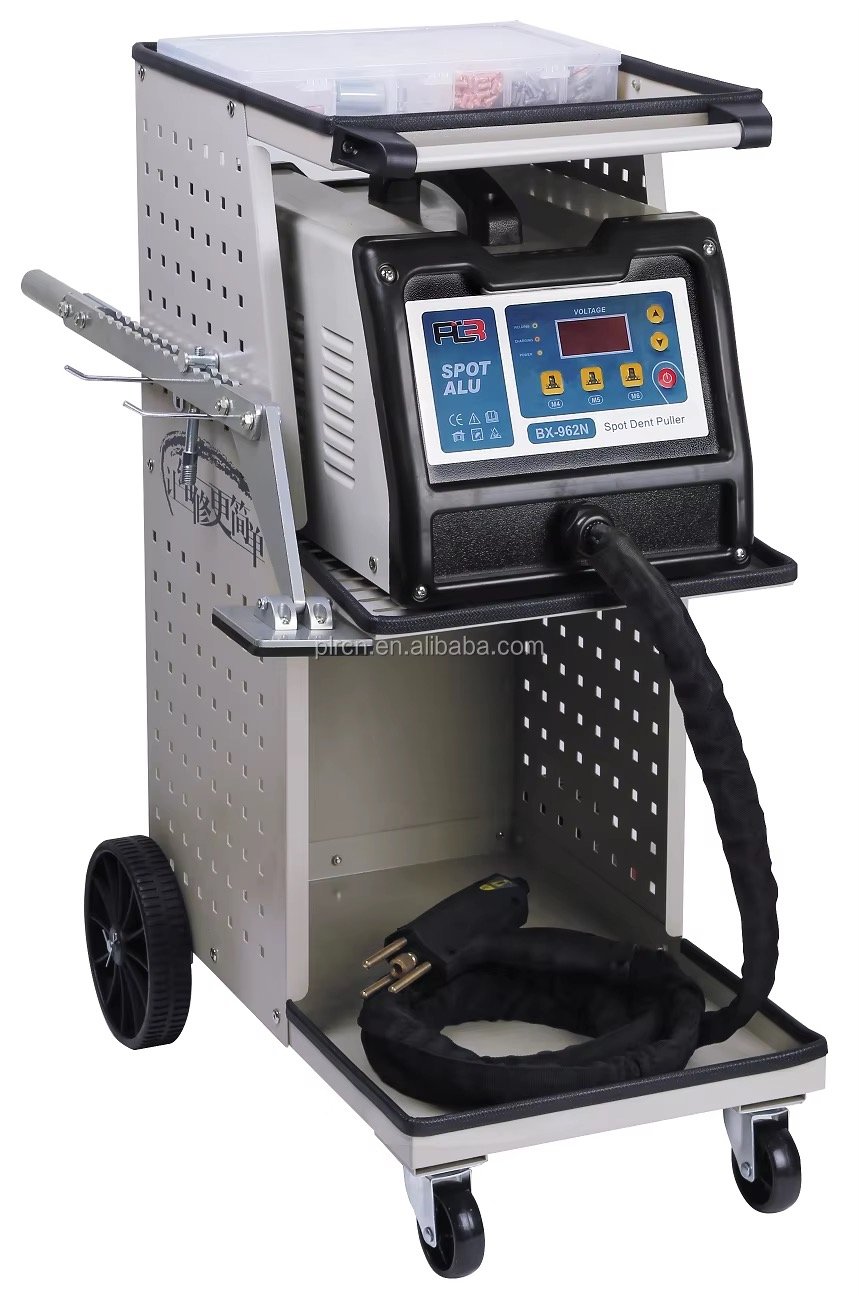

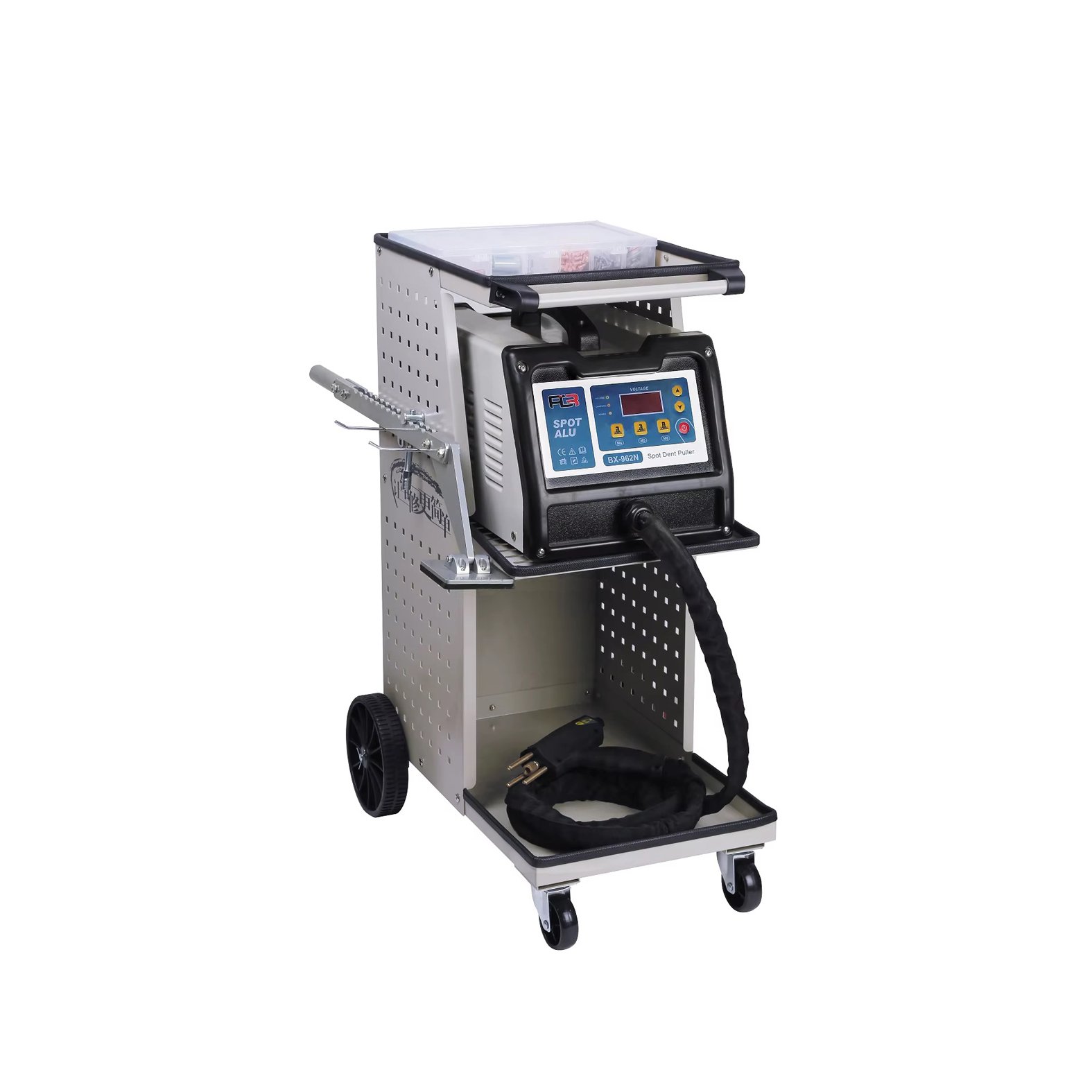

Button Type Alu Car Body Dent Repair Machine
Designed specifically to perform dent pulling on ALUMINIUM.
Using M4/M5/M6 studs, this device allows eliminating the bump and impacts (door panel,hood, …) without stripping.It can also be used for steel dent pulling uning steel studs. Micro-processor controlled with digital display

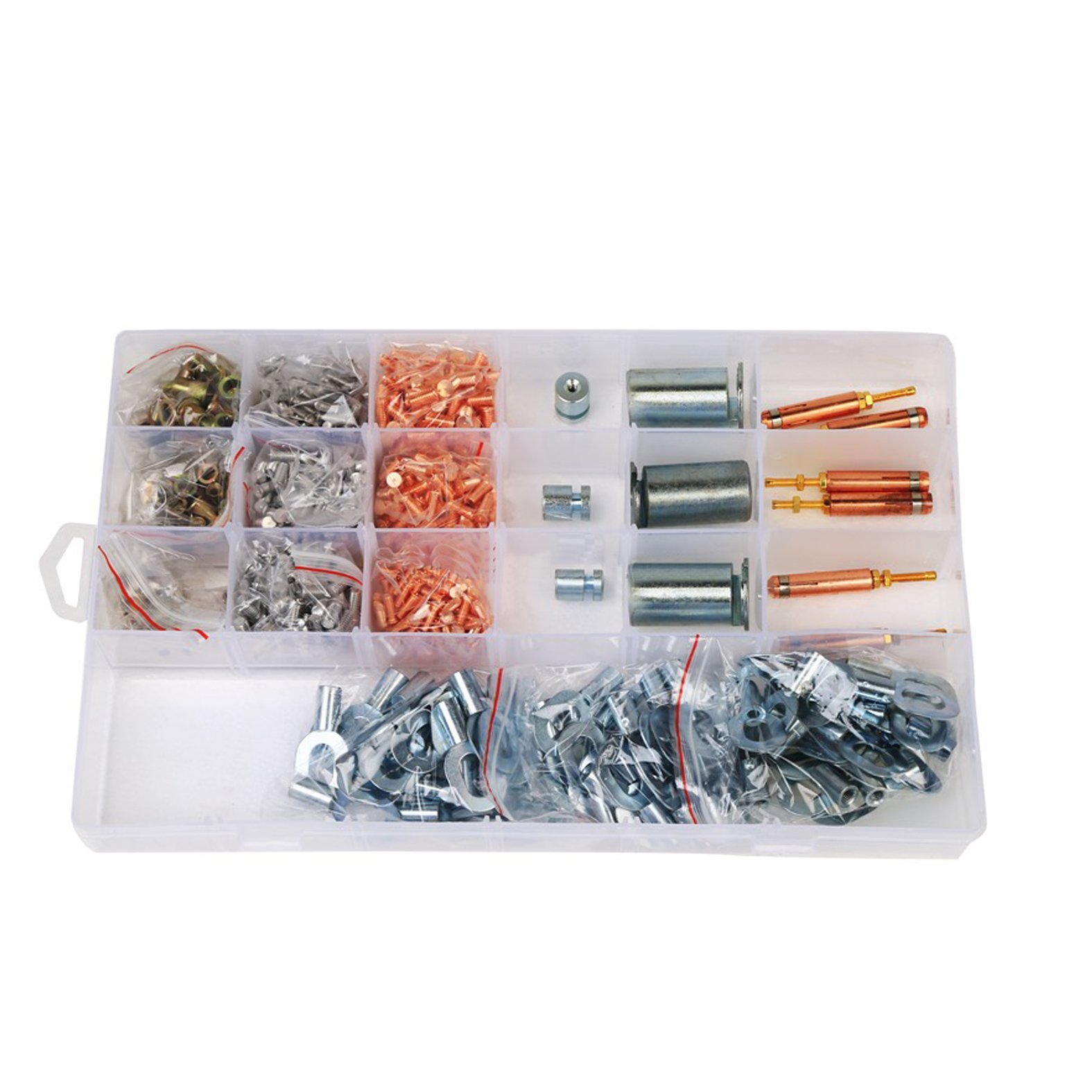

• the studs which is used (6 studs, ALU M4/M5/M6, STEEL M4/M5/M6)
• no need to select the welding voltage.
Automatic gun
The gun has no trigger; the welding is automatic when the tip slides into the gun. The earth terminals are integrated to the gun.
Features:
PDR- 962N Designed specifically to perform dent pulling on ALUMINIUM, also
be used for steel dent pulling uning steel studs,Micro-processor controlled
with digital display,with CE and ISO certificate.
| Technical Parameter | |
| Model | PDR- 962N |
| Power supply | 1ph 230V |
| Rated power | 1.5KVA |
| I2 max | 7500A |
| Capacity | 96000uf |
| Fuse | 10A |
| Output voltage | 40~190V |
| Welding mode | Automatic |
| Cable length | 3m 35mm2 |
| Packaging size | 70*45*90cm(0.23CBM) |
| Gross weight | 68kg |
| Packing | Polywooden |
| Certification | ISO CE |
