Features:

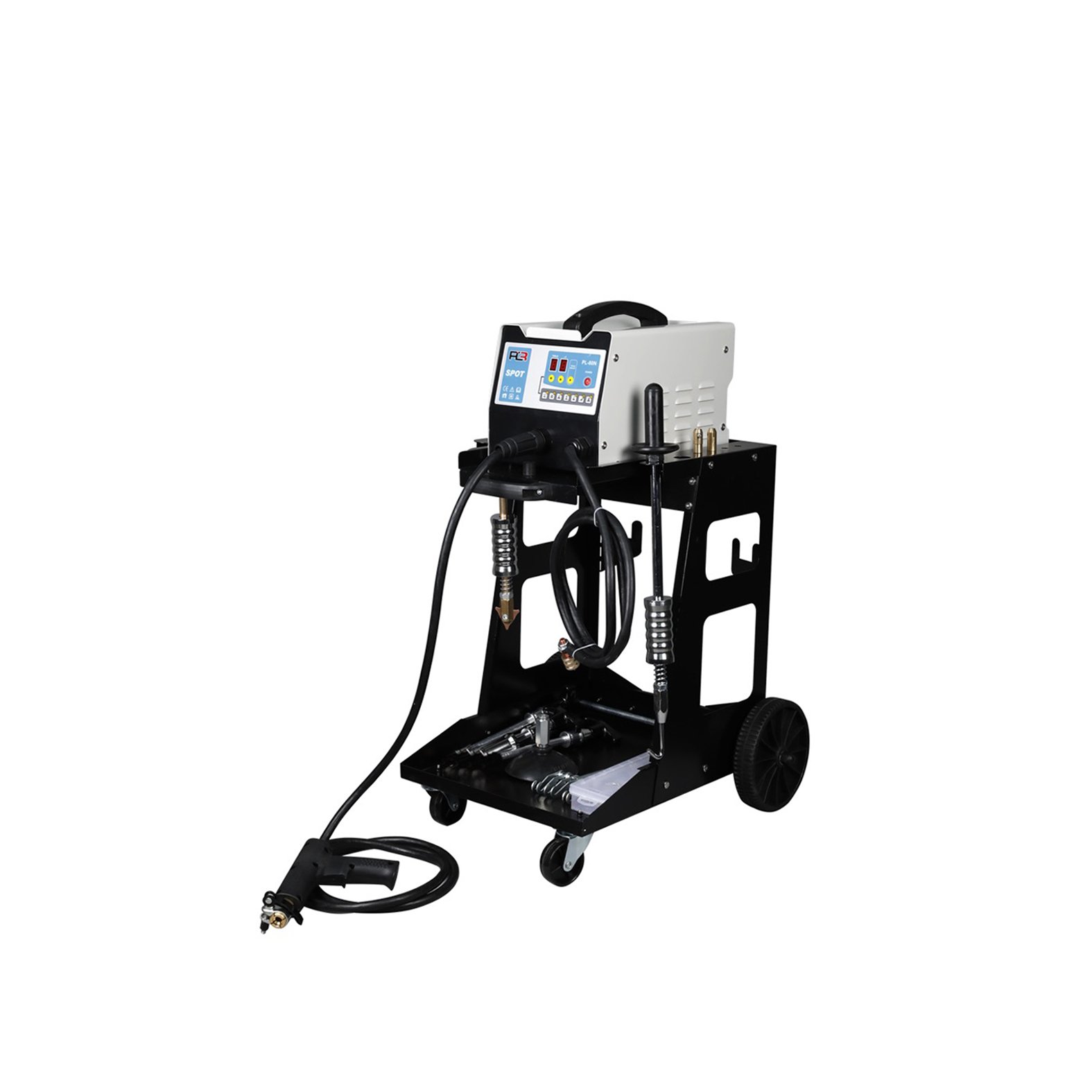

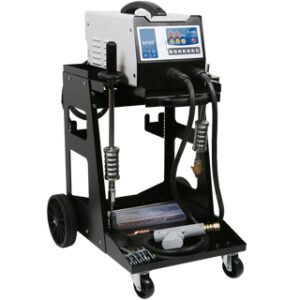

PDR- 80N is a steel dent pulling kit with CE and ISO certificate.
1. Subversion of traditional welding process, induction pulse welding.
2. No need for gun switch, key operation.
3. Split design.
4. It has seven functions: Spot welding direct pulling, welding OT washer, welding wavy wire, flatten, spot welding, shrinking and welding stud.
5. Built in 77 sets of welding parameters.
6. Equipped with copper rod pulling hammer.
Technical parameter | |
Model | PDR- 80N (steel) |
Power supply | 1ph 230V / 2ph 400V |
Rated power | 2.2KVA |
I2 max | 3800A |
I rms | 2800A |
Fuse | 16A |
Output voltage | 6-8V |
Welding mode | Inductive |
Cable length | 2m 70mm2 |
Packaging size | 57*46*62cm(0.17CBM) |
Gross weight | 45kg |
Packing | Polywooden |
Certification | ISO CE |
