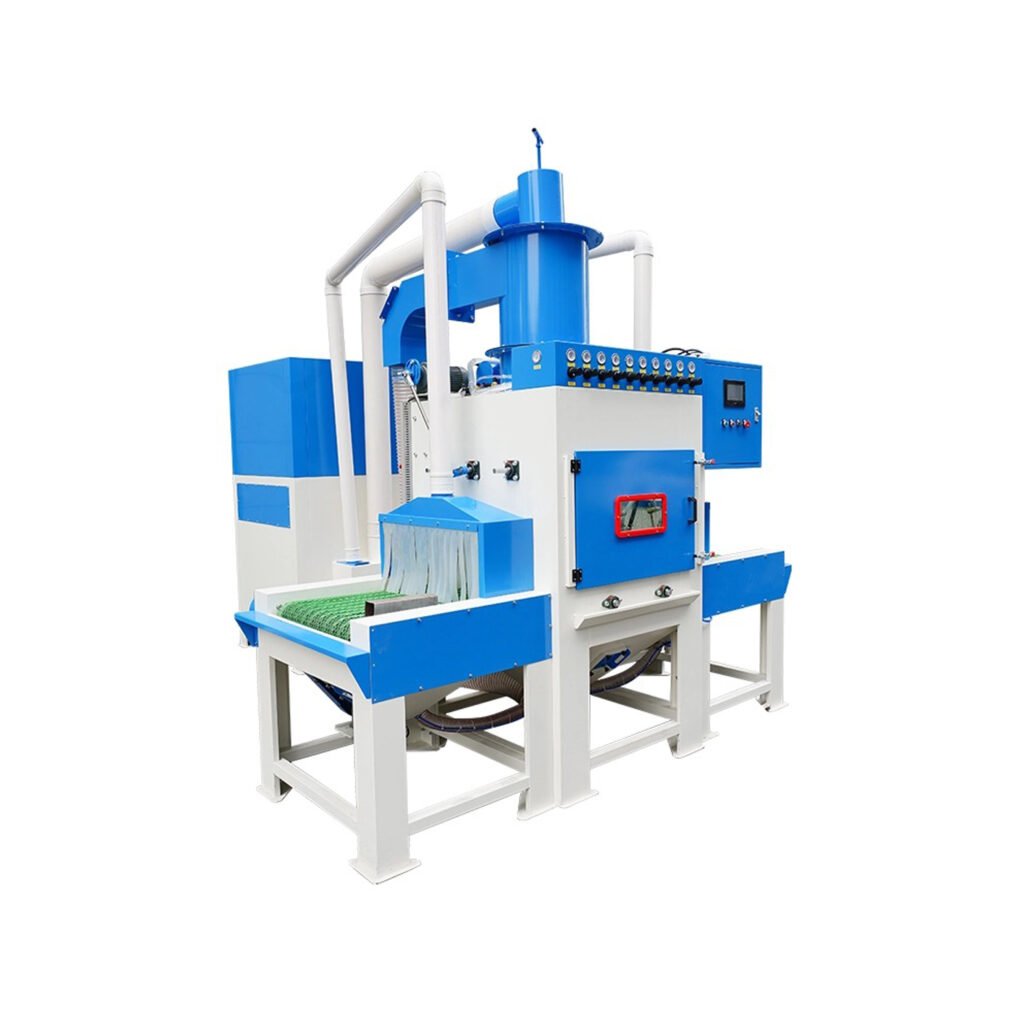

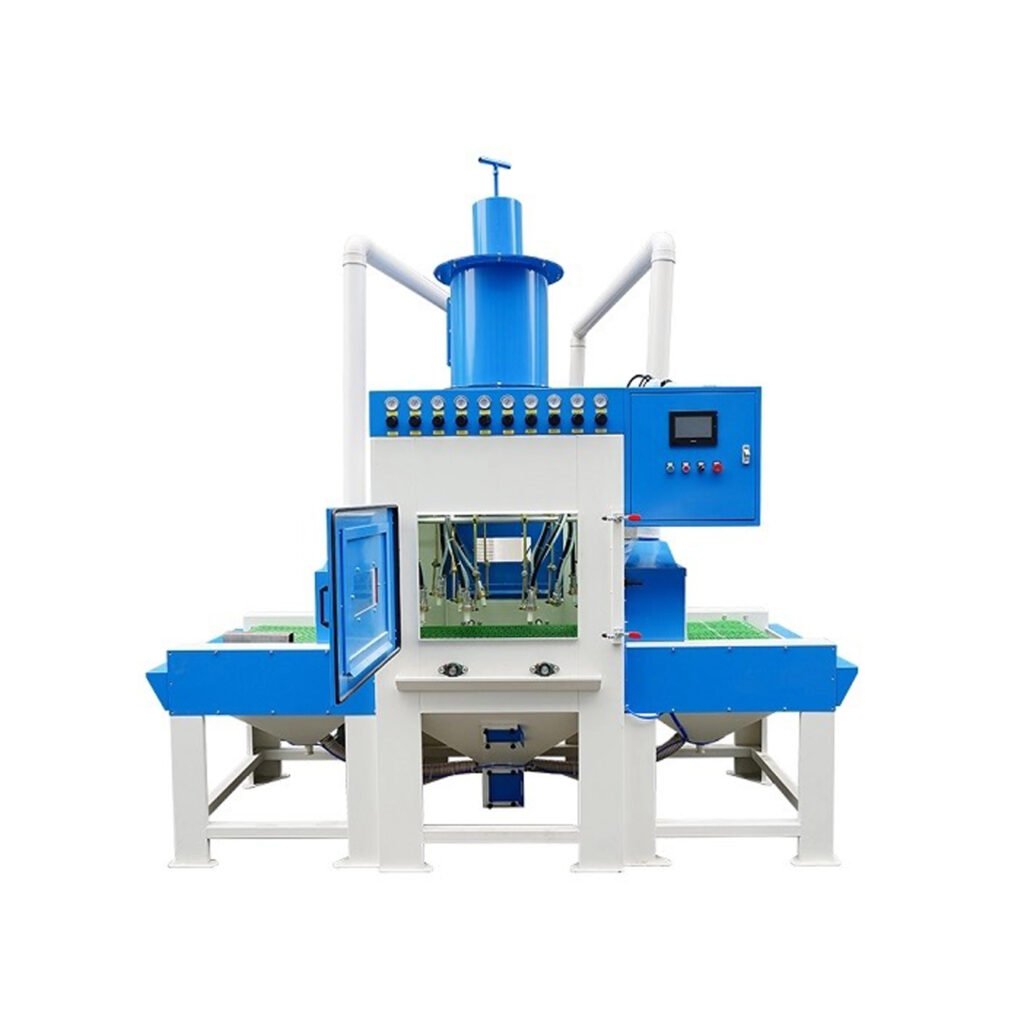

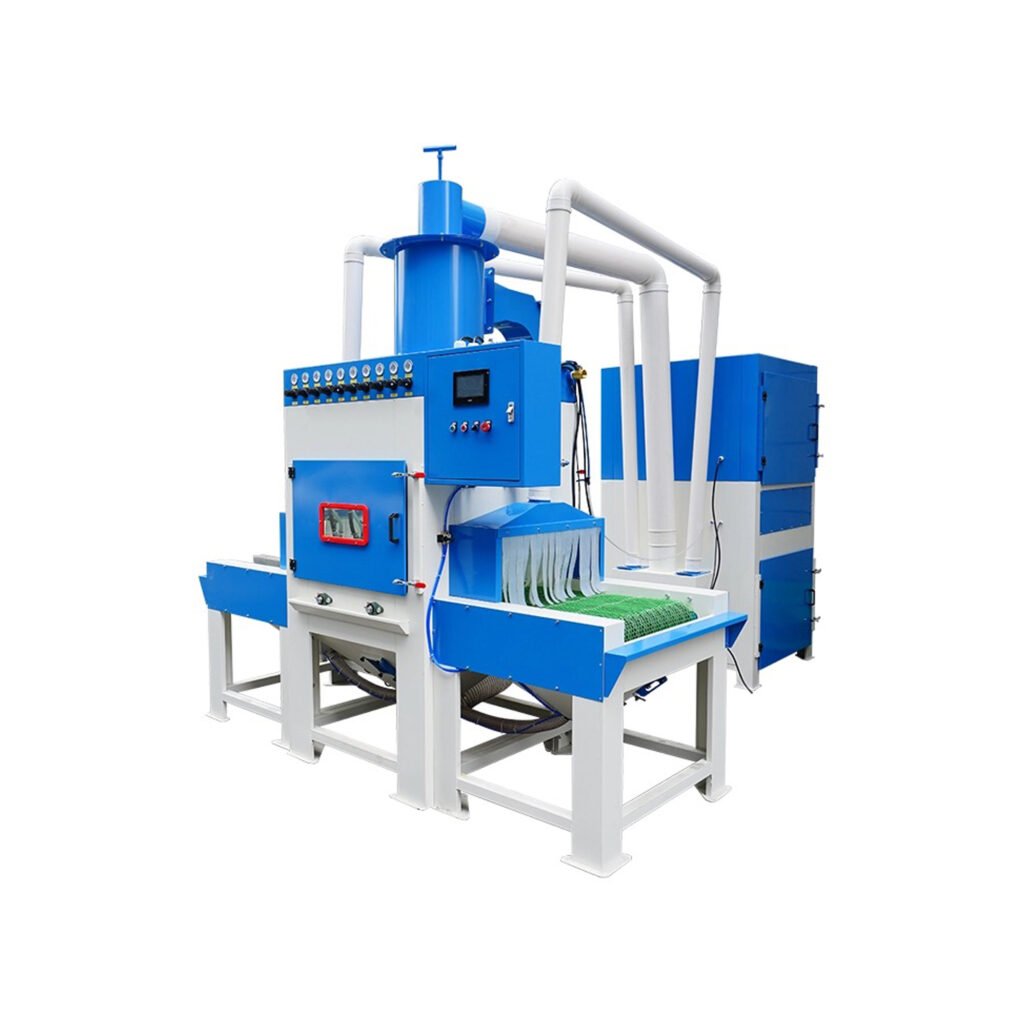

Automatic Sandblasting Machine, Pass Through Conveyor Sandblaster

Belt conveyor blasting machine allows a batch of workparts continuously pass thru the processing chamber for automatic blasting, which ahieves efficient working with reduced time and labor.

This sandblaster mainly constructed with conveyor system, automatic blast guns, control system, driving system, abraive funnels, cyclone and cartridge dust collector.

How automatic sandblasting machine works?

The operators put or fix the workpiece on the conveyor belt, when the workpiece is transported into the sandblasting chamber, the blasting guns automatically swinging and blasting, ensures the products is blasted entirely. Then the workpiece pass through the clean room for cleaning, finally comes out from the other side of the conveyor to be discharged.

Automatic Conveyor Sandblaster Features:

Automatic Blast Guns

Workparts are conveyed to the sandblasting area where they are processed by a group of automatic guns. Each blast gun is individually controlled for working by demands. Depending on the parts’ shapes and dimensions, the automatic sandblast guns can be set for fixed blasting or oscillating blasting with adjustable angles.

Continuous Conveyor Belt

The conveyor motor is controlled by frequency converter, whose speed can be steplessly regulated by inverter within the range of 0 ~ 2m/min. Several types of conveyor belt are available to move your parts through the blasting area, such as stainless steel belt, rubber belt, or roller conveyor for blasting top and bottom surfaces

PLC Control with Touching Screen

The sandblaster applies advanced PLC electric control system, with a high degree of flexibility and stability. The touching screen offers user-friendly interface to manage the blast working, adjust conveyor speed or start the dust collector. High automation guarantees the balanced uniform blasting effect, as well as safe production

Dust Removing & Media Recycling

Designed with cyclone separator for effectively separation of abrasives from dusts. Along with an independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation,  Blast-removed dust particles are exhausted to the dust collector while blast media is collected at the bottom of the cabinet, then returned to the storage hopper for further use.

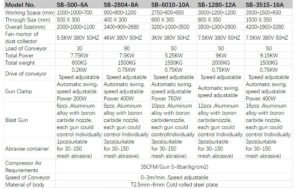

Automatic Comveyor Sandblasting Machine Specifications
