Features
1.Aluminum upright column reduces the weight of whole machine
2.Philips or Vpower 21 inch short-wave infrared quartz halogen lamp
3.Automatic devices, with electronic timer
4.The angle of lamp panel can be adjusted in the lengthwise and lateral directions
5.Input voltage: 1ph230V 5/10A 50/60Hz
6.Power:2000W(2 lamps) 3000W(3 lamps) 6000W(6 lamps)
7.Temperature range:40℃-80℃
8.Adjustable time setting
9.The low and high temperature automatic switch is specially set due to the very quick heating speed of
halogen lamp panel
10.Super-low and wide chassis can be applied to the low-chassis automobile and widthwise pass through tire
Technical parameter

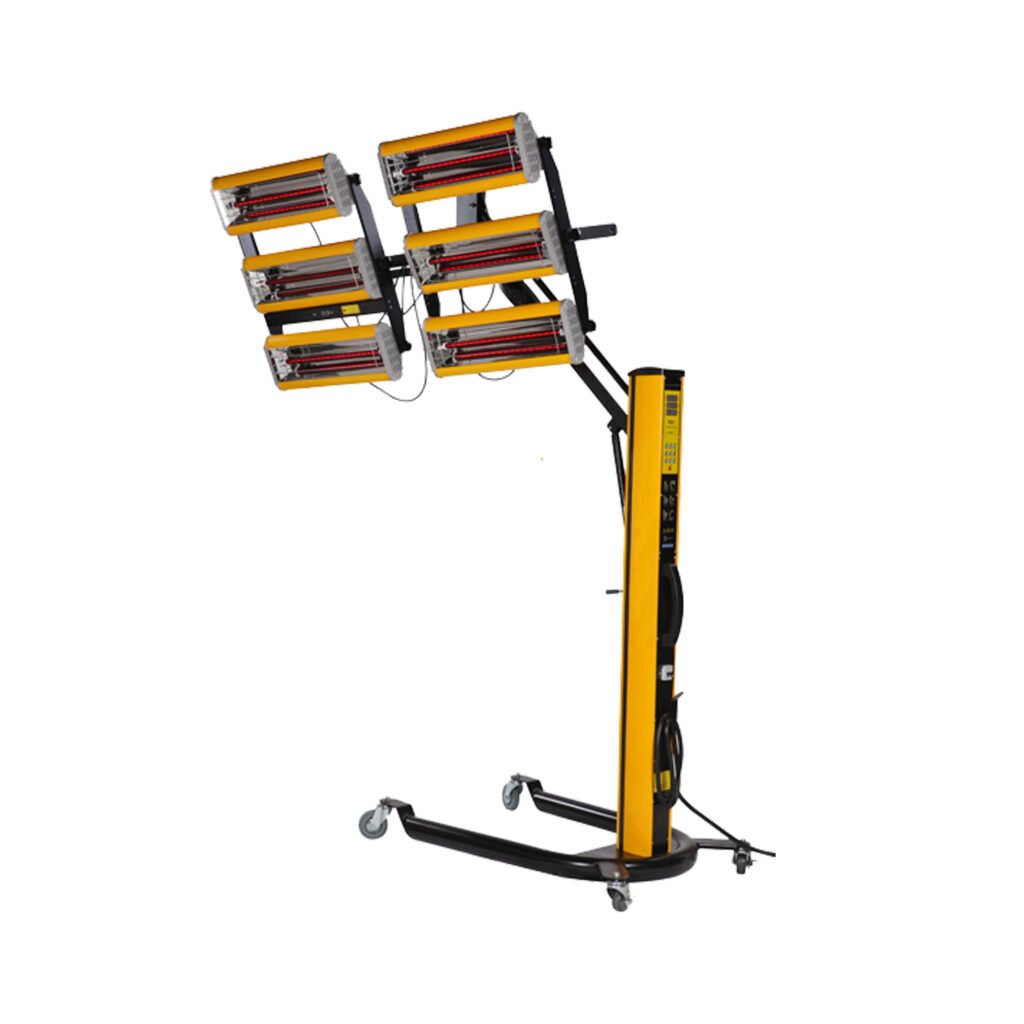

Model: PIL-6000W
Power supply: 1ph 230V
Rated power: 6000W
Height adjust: 0.2-2.1m
Work current: 27.2A
Output temperature: 40-80℃
Time adjust: 0.1-30min
Working distance: 0.5-0.7m
Packaging Size: 158*70*18cm(0.2CMB)
108*83*36cm(0.324CMB)
Gross Weight: 83kg
Color: Gray or Yellow
Packing: Carton
Certification ISO CE
Features
1.Aluminum upright column reduces the weight of whole machine
2.Philips or Vpower 21 inch short-wave infrared quartz halogen lamp
3.Automatic devices, with electronic timer
4.The angle of lamp panel can be adjusted in the lengthwise and lateral directions
5.Input voltage: 1ph230V 5/10A 50/60Hz
6.Power:2000W(2 lamps) 3000W(3 lamps) 6000W(6 lamps)
7.Temperature range:40℃-80℃
8.Adjustable time and temperature setting
9.The low and high temperature automatic switch is specially set due to the very quick heating speed of
halogen lamp panel
10.Super-low and wide chassis can be applied to the low-chassis automobile and widthwise pass through tire
11.Fully automatic distance sensor
12.Fully automatic overload protection
Technical parameter

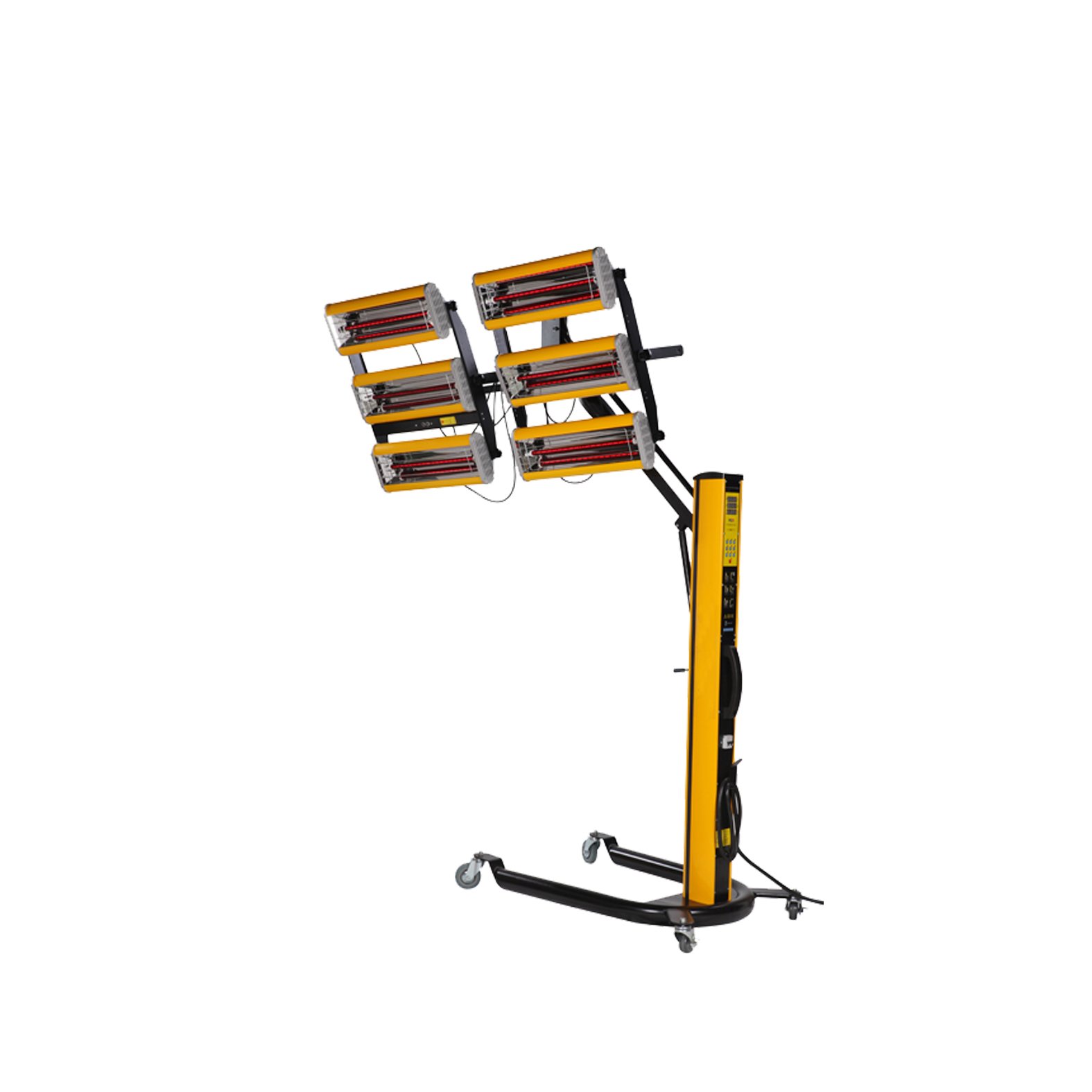

Model: PIL-6000D
Power supply: 1ph 230V
Rated power: 6000W
Height adjust: 0.2-2.1m
Work current: 27.2A
Output temperature: 40-80℃
Time adjust: 0.1-99min
Working distance: 0.5-0.7m
Packaging Size: 158*70*18cm(0.2CMB)
108*78*18cm(0.162CMB)
83*72*18cm(0.108CBM)
83*72*18cm(0.108CBM)
Gross Weight: 28+22+14+14=78kg
Color: Gray or Yellow
Packing Carton
Certification ISO CE
