Our Multi-Cyclones design offer great recovery efficiency and quick color change for all automatic spray booth.
These filters are installed after the cyclones. They use self cleaning cartridges and reach over 99.99% separation efficiency. the filtes use Rotary wing recovey system.
Composed by 9 cyclones, 9 filters. 1 Air Fan. Finally Paper Filters on the bottom. Total high: 3348mm

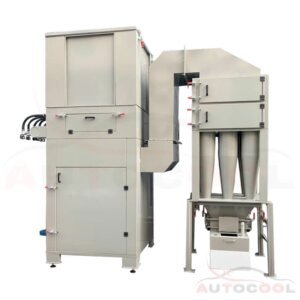

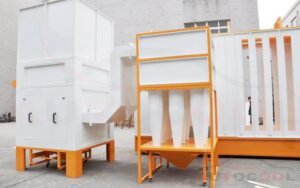

Multi Cyclone Dust collector for Powder Coating Booth Specification
| Model | Cyclone |
| Booth Type | Multi-Cyclone |
| Operator dimensions | 800width x 2000 height x 6000 depth |
| Overall dimensions | 800width x 2000 height x 6000 depth |
| Weight | 4000kgs |
| Power supply | Electric |
| Nominal power | 11KW |
| Voltage | 380V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters count | 18pcs |
| Filters hang type | easy for change |
| Filter cleaning system | Pneumatic |
| cyclone | 9pcs,Efficient automatic separation |
| Rotation wing self-cleaning cartridge filter unit | 1set |
| fliud hopper | 1set |
| Warranty | 12 months |
