Technical Parameter:

Input Voltage:                     AC 380V

Frequency:                          50Hz

Rated Power:                      5KVA

Fuse:                                   10A

Welding Current:                10-205A

Duty Cycle:                          35%

Insulation Grade:                 F

Wire Diameter:                    0.8 / 1.0mm

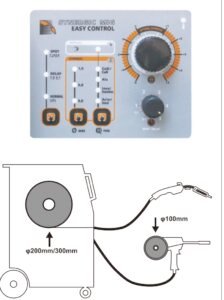

Wire Feeding Mechanism:   inner & external

Package Size:                       770*470*790cm

Weight:                                54KG

• According to the welding characteristics of middle and high-end car body, double wire feeding mechanism and built-in wire feeding mechanism are suitable for steel welding. External wire feeder is suitable for aluminum alloy body welding and also used with aluminum,steel, copper, stainless steel and so on.
• Digital integrated circuit board control system.
• Advanced variable voltage technology, welding current design delicate, current regulation performance safety, reliable, in line with the latest global environmental protection design requirements.
