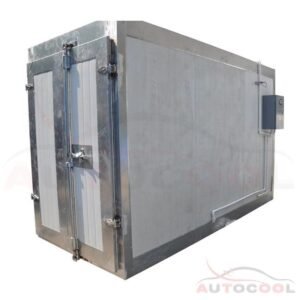

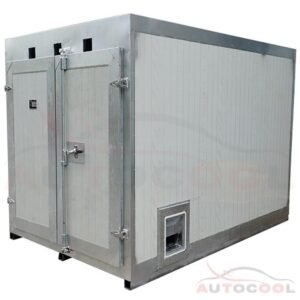

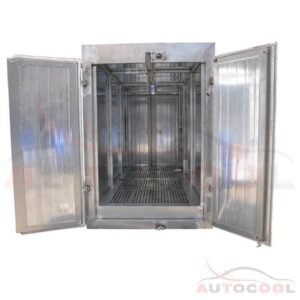

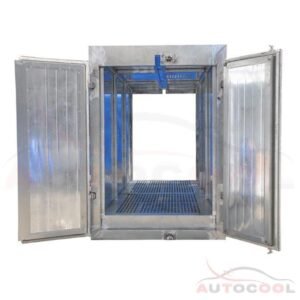

Top Track Powder Coating Oven MCO-2447
Track powder coating oven allows to installed with conveyor system to combine with tunnel powder coating booth for manual continuous production.
Electric Powder Coating Oven Features
1. PLC panel allows the operator accurately setting desired temperature & heating time as well as adjust the unit accordingly, with alarms function and emergency stop to ensure safety
2. Powerful fan speeds up hot airflow that leads to quality cured finishes and optimum cure cycles.
3. Insulation material is 100mm thick rockwool board, density 120kgs/cbm, an excellent performance of heat reservation.
4. We can design the the powder coating oven with 1 track, 3 tracks or more to meet your demands.
MCO-2447 Track Powder Coating Oven Specifications
| Working dimensions | Width1200 x Height1700 x Depth3200 mm |
| Overall dimensions | Width1407 x Height2203 x Depth3424 mm |
| Power supply electric | Elecrtic/40kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 2.2kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
