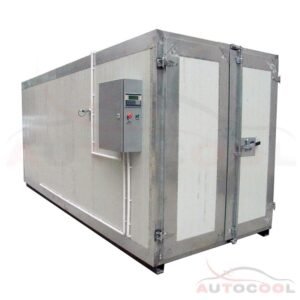

Electric Powder Coating Baking Oven MCO-3217, Can be changed heating by Gas or Diesel.
The 3 meter length curing oven is designed for powder coating larger bulky parts or a batch production of small-sized parts. Electric heating style reduces the task of operation and maintenance as well as creates a more clean environment.
Electric Powder Coating Oven Features
1. All parameters and functions are set on PLC panel, provides a high precision heating process.
2.100mm thick rockwool insulation material keeps constant temperature whose stability less than 3℃.
3. A high peformance fan is excellent for hot airflow circulation, reaching any corner of the oven to ensure baking uniformity and efficiency.

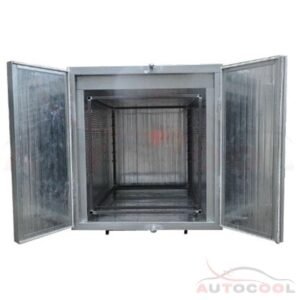

4. A pair of outer & inner trolley makes easy loading of workparts. It affects the reduction of the impurities content from the floor in the chamber.
MCO-1732 Electric Powder Coating Oven Specifications
| Worksize dimensions | Width1650 x Height1700 x Depth3200 mm |
| Overall dimensions | Width1950 x Height2100 x Depth3600 mm |
| Power supply Electric | 30kw |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 1.5kw |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
