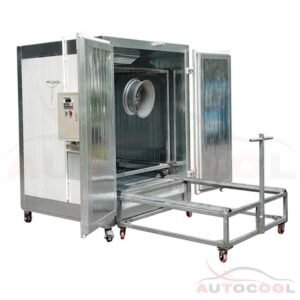

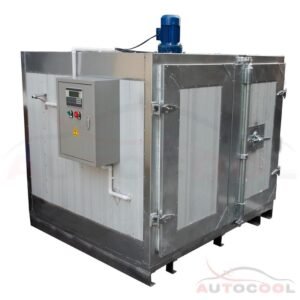

Commercial Powder Coating Oven MCO-1515
MCO-1515 powder coating oven applies PLC control technology giving precision heating process. Airflow systems promote air mixture for faster temperature rise and uniform heating. Electrical powder coating oven ensures the environment clean, an excellent tool for commercial & industrial powder application.
Electric Powder Coating Oven Features
1. PLC panel allows the operator accurately setting desired temperature & heating time as well as adjust the unit accordingly, with alarms function to ensure safety
2. Powerful 0.75kw fan speeds up hot airflow that leads to quality cured finishes and optimum cure cycles.
3. Insulation material is 100mm thick rockwool board, density 120kgs/cbm, an excellent performance of heat reservation.
4. A pair of outer & inner trolley makes easy loading of workparts, It affects the reduction of the impurities content from the floor in the chamber.
MCO-1515 Electric Powder Coating Oven Specifications
| Working dimensions | Width1500 x Height1500 x Depth1500 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |

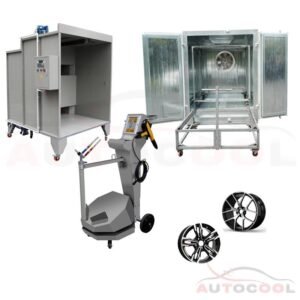

Powder Coating Batch For Wheel RIM
