Large sand blasting machine

Large sandblasting cabinet, designed with multiple sandblasting job positions, usually two or three stations, allows one or more users operate at the same time, the large internal space can be applied for oversized workpieces within a certain range.

Model: SBM-2810 (3 working stations)


Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

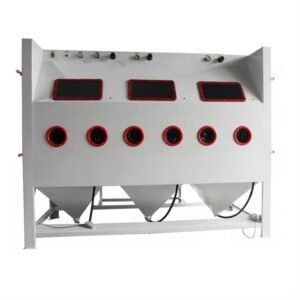

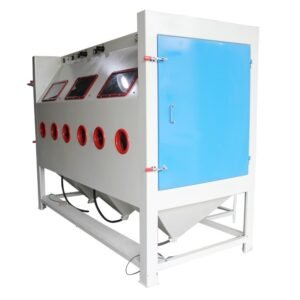

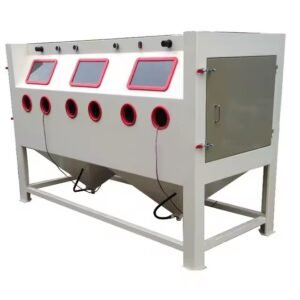

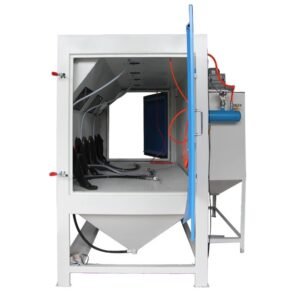

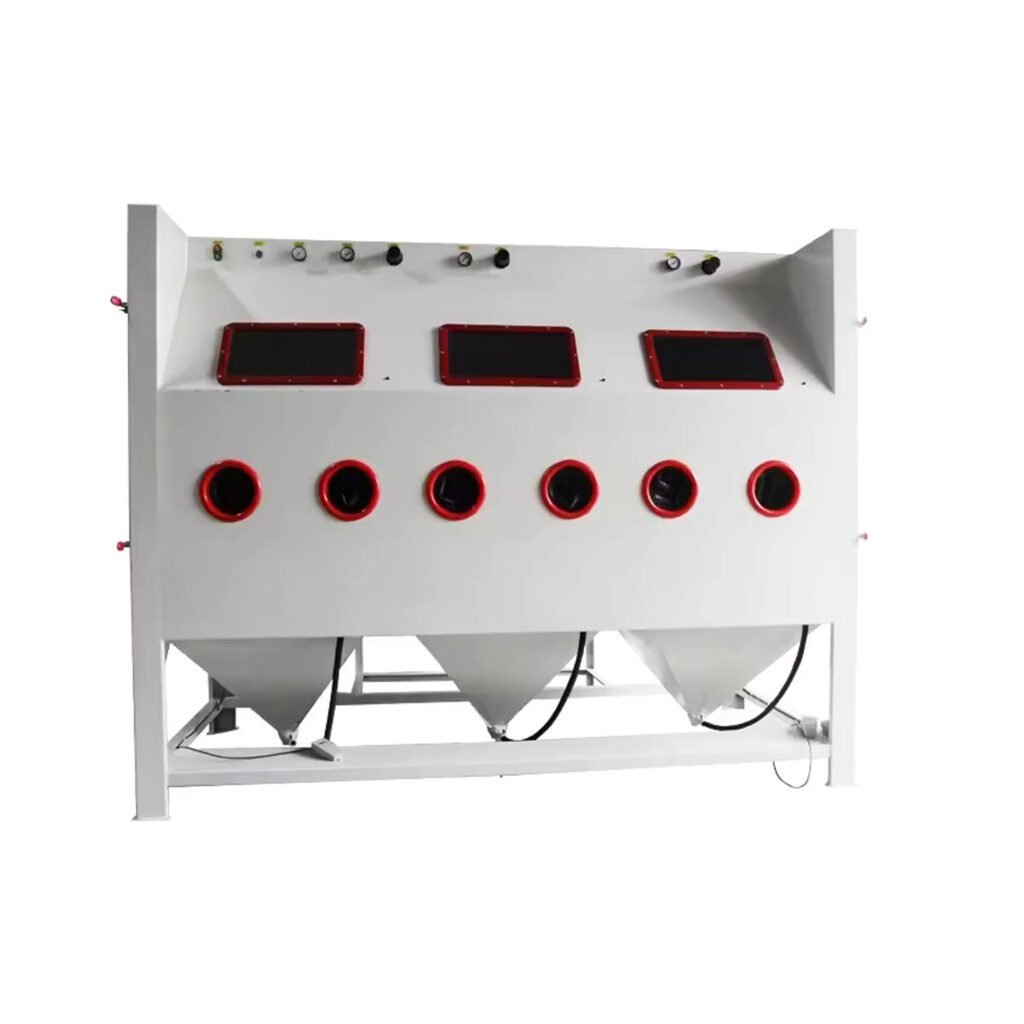

Multi-station Large Sandblasting Cabinet

Multi-station sandblasting cabinet designed with three working positions allows one or more users operate at the same time, the large internal space will be ideal for oversized workpieces and increase treatment efficiency.

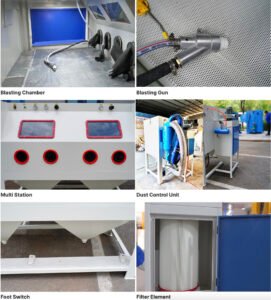

Multi-station Sandblasting Cabinet Features

1. Cartridge filter remove system effectively collect dust, and ensures only clean and dustless air discharged to the atmosphere

2. Pressure regulators, filters, solenoid valves and other major components are high-quality brand, guarantee long lifespan.

3. Blasting gun is aluminum alloy casting with boron carbide nozzle, durable and reducing fatigue of sandblasting operators.

4. There is an abrasive funnel at the bottom of the blast cabinet, used abrasives can be recycled to reduce consumption.

5. Foot pedal switch to control the work of blasting gun, which reduces the user’s fatigue, facilitates the operation and ensures the safety.

Model:SBM-2810 (3 working stations)
Overall Dimension:Length2100 * width1000 * Height1800mm
Working Dimension:Length2095 * Width995 * Height800mm
Power:220V/380 50Hz/60Hz (customized)
Body plate thickness:2mm
Cabin lights220V 13W anti-riot lights
Separator motor:220V 50HZ 550W
Separator power:1.1KW
Separator air volume:4.5m3 / min
Work piece sandblasting gun:3 pieces
Compressed air source:3-8bar (kg / cm2) flow 0.6-1.0 cubic meters / min.
