Product Description

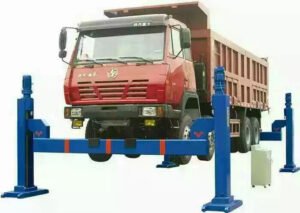

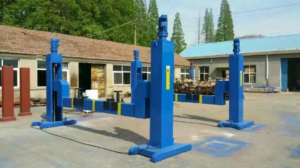

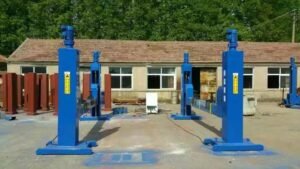

Mobile Single Post Lift, Automatic Lock Release
Feature:
1. Large load capacity, leading domestic
2. The column spacing is movable, easy to use
3. Column rail, synthetic steel, smoother operation
4. Built-in lifting capacity is large
5. Deceleration with a planetary colloidal pin, the screw rotates, and the nut drives
the lifting beam to lift
6. User-friendly design, reasonable and beautiful
| Specification: | |
| Lifting capacity | 20000kg/30000kg/40000kg |
| Column | 4 |
| Single column capacity | 5/ 7.5/ 10T |
| Lifting stroke(mm): | 1500mm |
| Lift time(s) | 120S |
| Motor power(Kw) | 2.2/ 3 Kw |
| Input voltage(V) | 380v/ 3ph |
| Driving mode | Electric mechanical |
