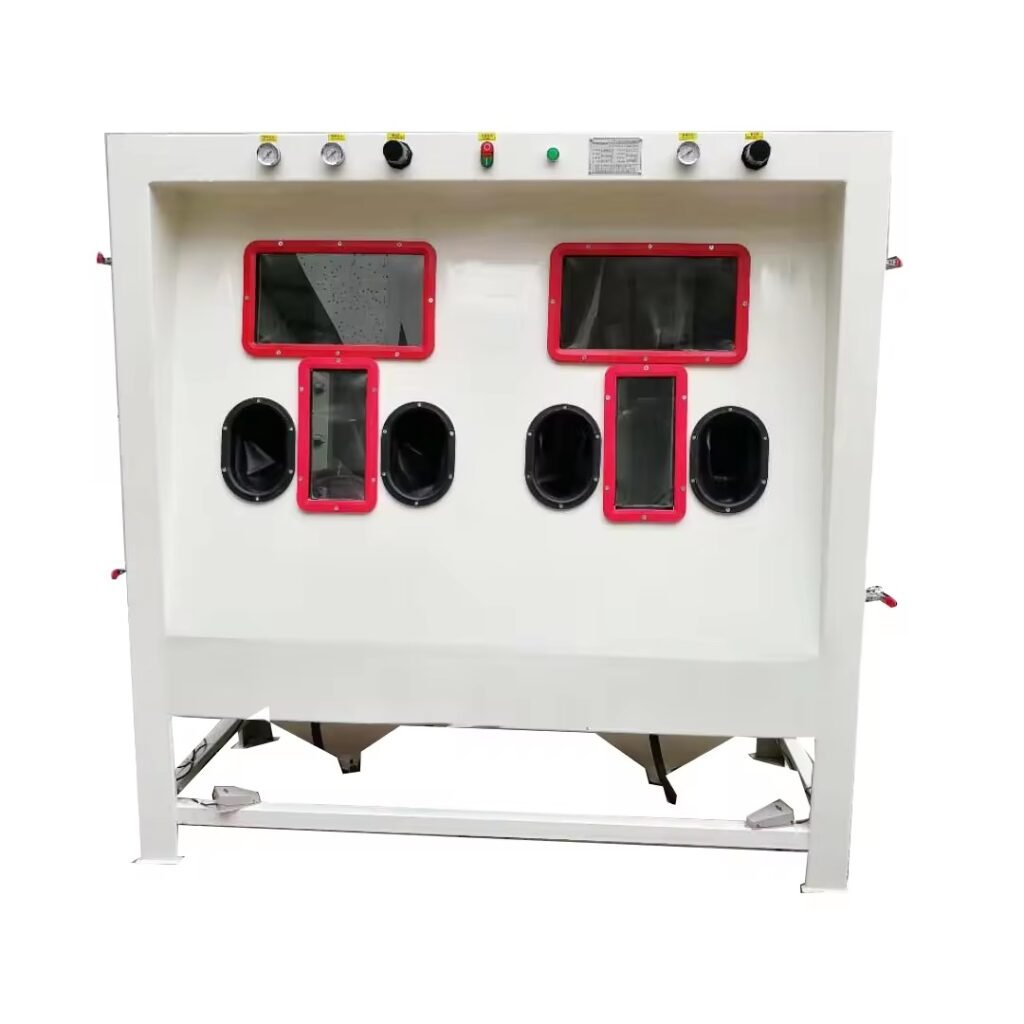

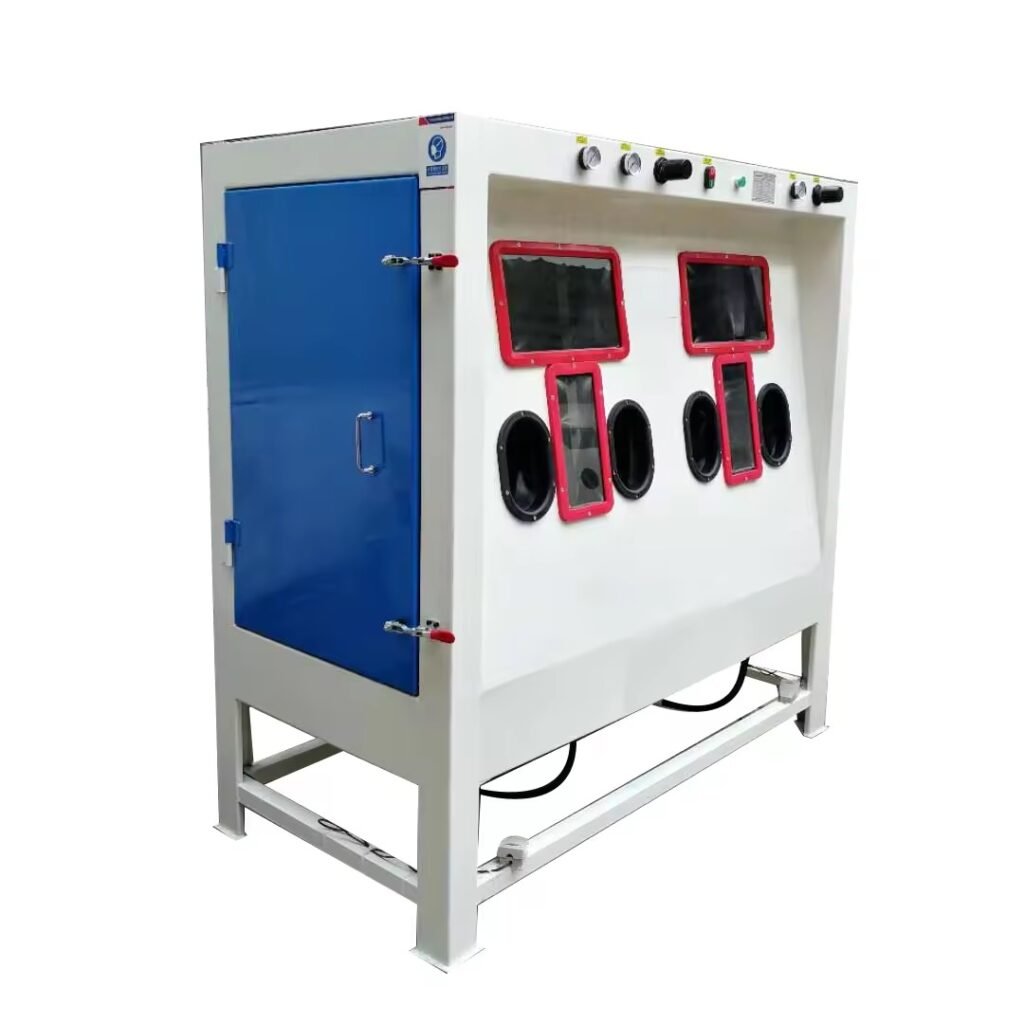

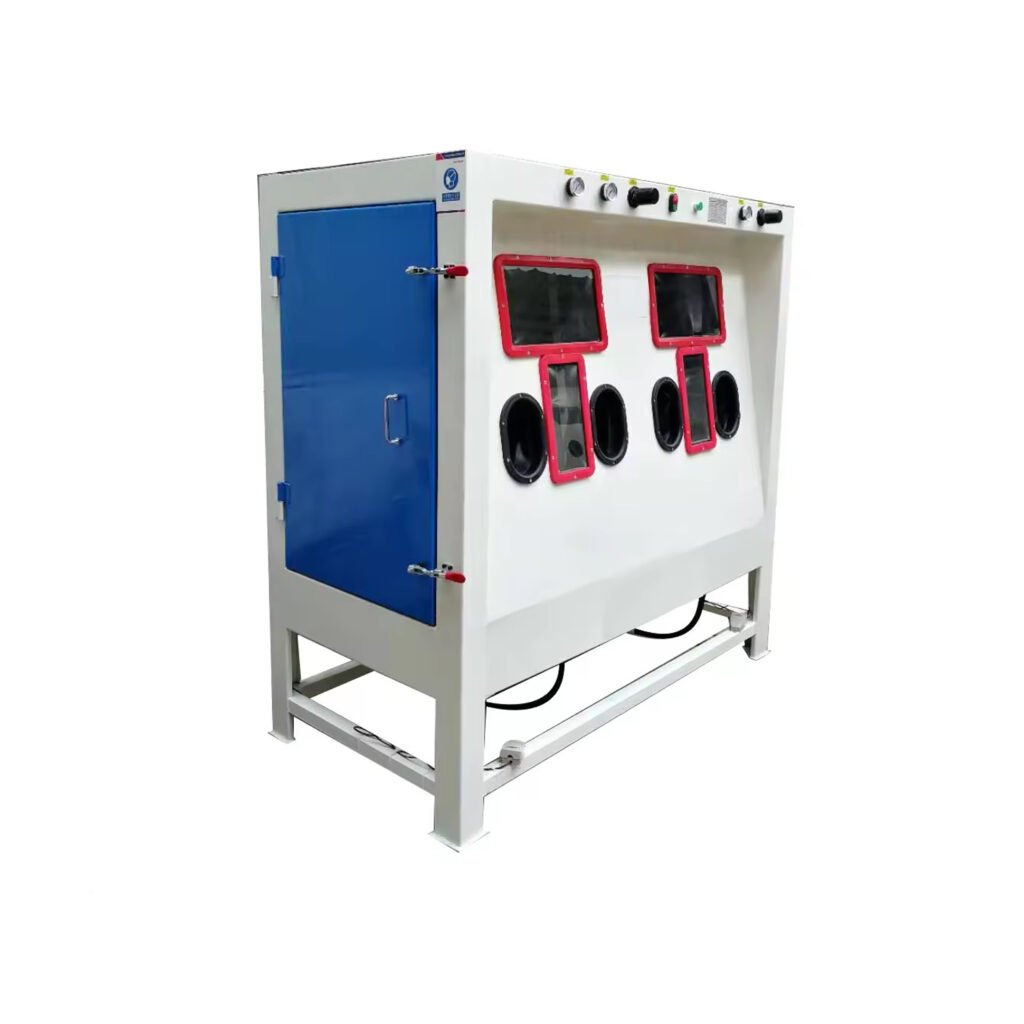

Headstone Sandblasting Machine Cabinet

Headstone sandblasting machine removes the contaminants, imperfection, restore the scratches, also matte finishes the light surface and get a certain roughness, which is applicable for construction decorating.

Model: SBS-1809-2A  (Cyclone recycling optional)


Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

Headstone Sand Blasting Cabinet Features

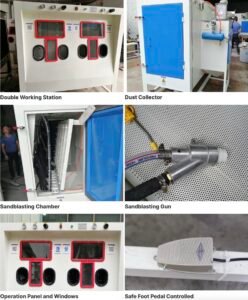

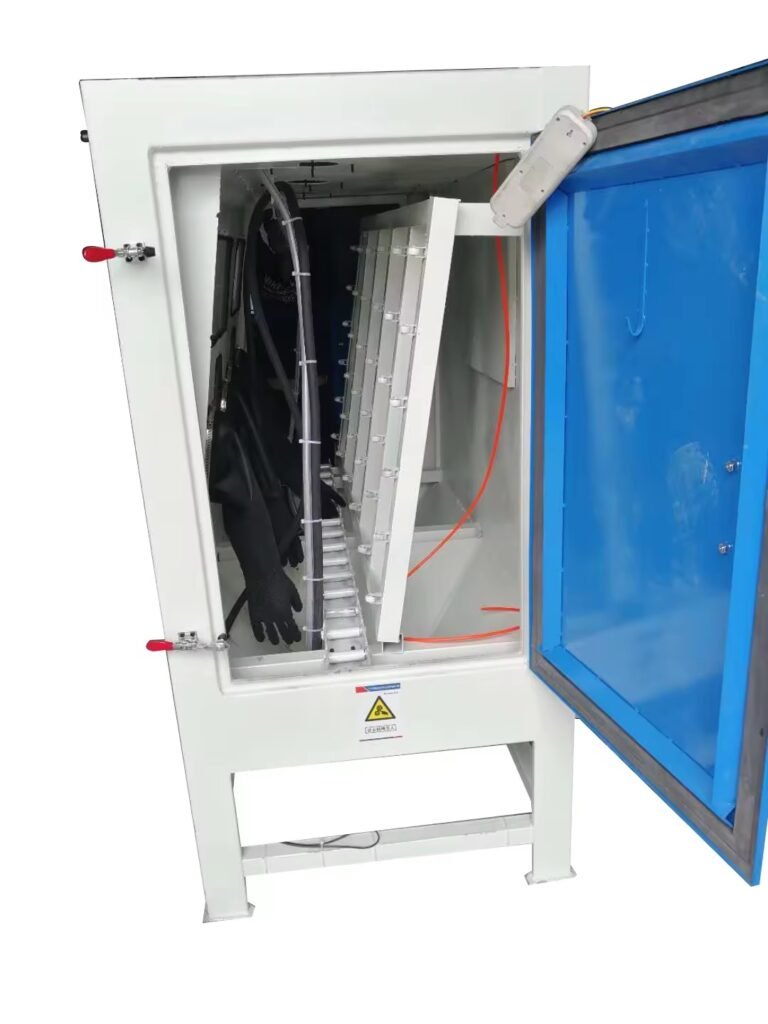

1. The tombstone blasting cabinet has double working stations, containing 2 sets blasting gloves and 2 sets blasting guns, which allows bigger size workpieces, and two operates working simultaneously. 2. The inner cabinet of the stone blasting machine has back pulleys and bottom slide for easy movement of the products, ensures the surface of the workpiece is uniformly blasted by abrasives, achieve optimal sandblasting results. 3. When the foot switch is lightly pressed, the solenoid valve opens and the compressed air enters the blast gun. The abrasive will be ejected from the bottom of the storage tank to the gun, then is jetted onto the surface of the workparts. 4. Adjusts the filter pressure valve to control the compressed air pressure which enters into the blasting gun based on the working requirements. The working pressure can be chosen within the range of 2.8-7 bar. 5. The dust collector at the back of the headstone sandblasting cabinet is cartridge filter type, effectively remove dust from the working chamber.

Specification:

Model
SBS-1809 -2A
Outer Dimension
L1800mm * W900mm * H1800mm
Working Dimension
L1800mm * W900mm * H1200mm
Max. Size of Processed Product
Length1600mm * Width1000mm
Thickness100mm
Power Supply
220V, 50Hz
Lighting
220V, LED, 3 sets
Compressed air supply
5-7bar(kg/㎡)
Air Flow
0.8-1.2m3/min, dry clean compressed air
Dust Collector Type
Pulse-jet cartridge filter type
Basting Gun
B type, 2pcs,with 8mm boron carbide nozzle.
Machine Loading Capacity
300kg
Machine Weight
500kg
