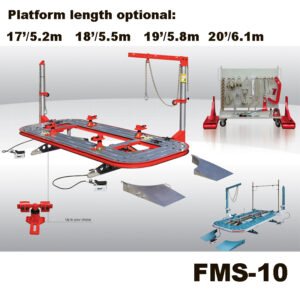

FMS-10 Auto Body Straightening Equipment

  • Platform slope type
  • Length: 5200/5500/5800mm optional
  • Width: 2200mm
  • Height: 560mm
  • Product description: USA popular type car bench auto frame machine Car straightening bench Auto Body Collision Repair System, platform make from square tube, length 5200/5500/5800/ 6100mm optional, height slope type.

Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

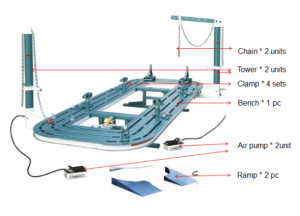

USA popular type car bench auto frame machine Car straightening bench Auto Body Collision Repair System

Model NumberFMS-10
Length5200/5500/5800mm optionalWidth2100mm
Height560mmAir Supply Required0.8Mpa
Hydraulic Power70MpaPower pulling capacity95KN
Range of pulling360°Weight2700/2800/2900KG
Maximum load3500KG

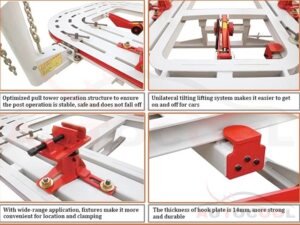

Feature:

  1. The platform is made of square tube.
  2. The hydraulic towers can be moved freely alongside the platform and turn 360° as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
  3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.
  4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
  5. Portable measuring system is easier for workers.
  6. Major clamps fix the auto quickly, firmly and accurately.
  7. Top-quality welding with high strength and good-looking.
