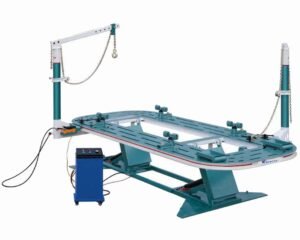

Auto Body Repair Shop Frame Machine Straightner Pulling Machine
| FML-20 (Lifting Manganese plate) | B | C | D |
| Working platform length | 18’/5.5m | 19’/5.8m | 20’/6.1m |
| Working platform width | 7’/2.1m | 7’/2.1m | 7’/2.1m |
| Working platform height | 12-40”/0.30-1.02m | 12-40”/0.30-1.02m | 12-40”/0.30-1.02m |
| Max working pressure of hydraulic | 70MPa(10000psi) | 70MPa(10000psi) | 70MPa(10000psi) |
| Max lifting force of tower cylinder | 95KN | 95KN | 95KN |
| Pulling range of the tower | 360° | 360° | 360° |
| The pressure of the air source | 0.8MPa | 0.8MPa | 0.8MPa |
| Max lifting weight | 3500kg | 3500kg | 3500kg |
| Equipment gross weight | 3100kg | 3300kg | 3500kg |
| Power unit voltage/Electric pump power | 220V/ 2.2kw | 220V/ 2.2kw | 220V/ 2.2kw |
Frame machine Features:
- The platform is Manganese plate with its panel formed by the large-scale CNC cutting machine from a single cut. The notch is smooth with no heat deformation.
- All parts are treated with shot blasting to eliminate welding stress and increase surface strength, which improves the painting adhesion.
- The towers are 360°movable,freely and flexibly,the cylinder works vertically without any components forces consumption,powerful and accurate tensile force.
- Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.
- Portable measuring system is easier for workers,3D mechanical measuring system optional.
- More humanized design of equal-rise and equal-fall structure makes it easy to adjust the height of the platform.

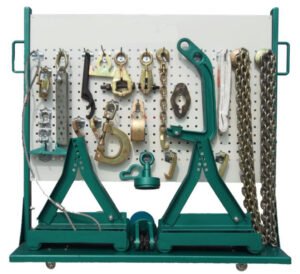

- High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with long service life.
- Strength needed parts like tower guiding ring, main clamp support and tower rear coverplate adopt inblock cast to ensure high strength and deformation resistance.
- The principal clamp can fix position and clamp the cars rapidly,accurately and firmly. Many clamps such as ABB optional.
- Appropriate for operating maintenance of medium or small cars.
