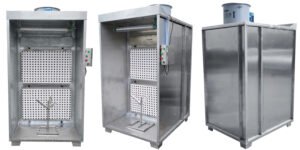

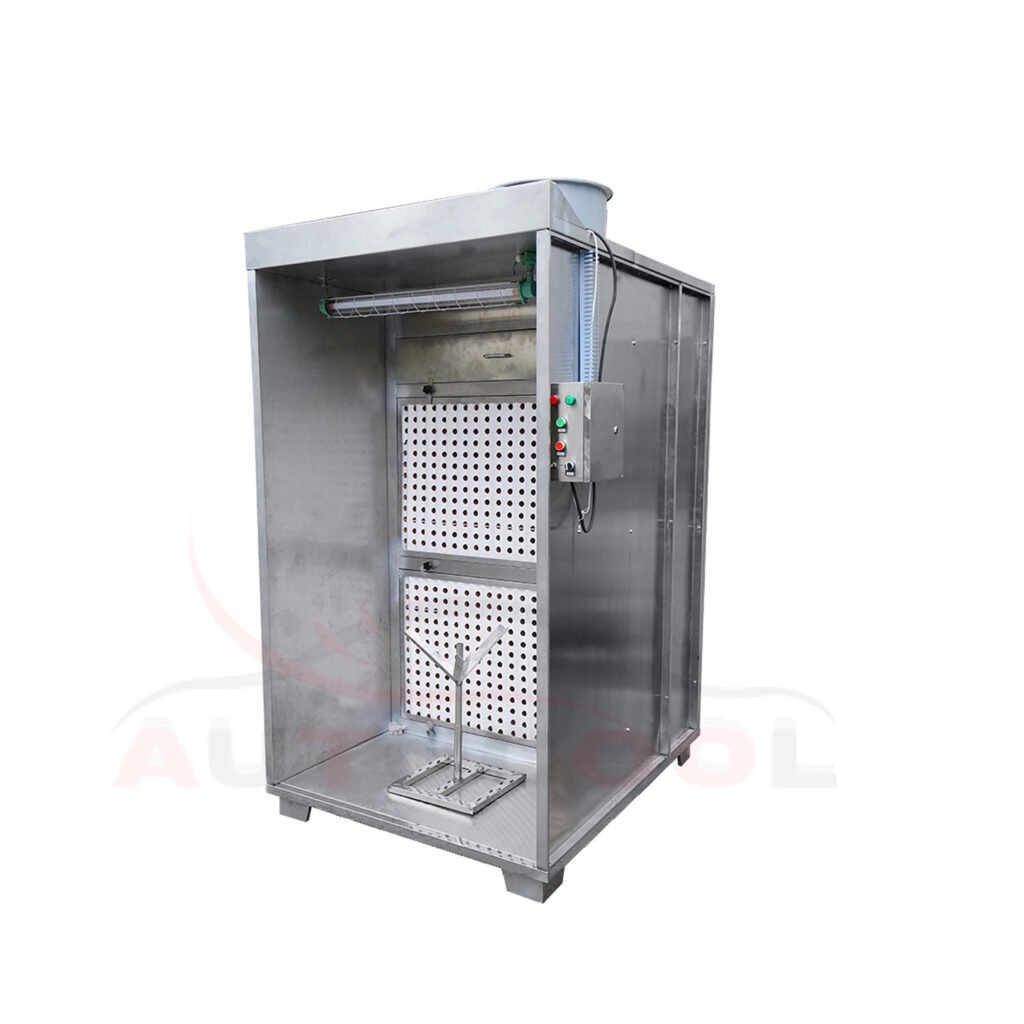

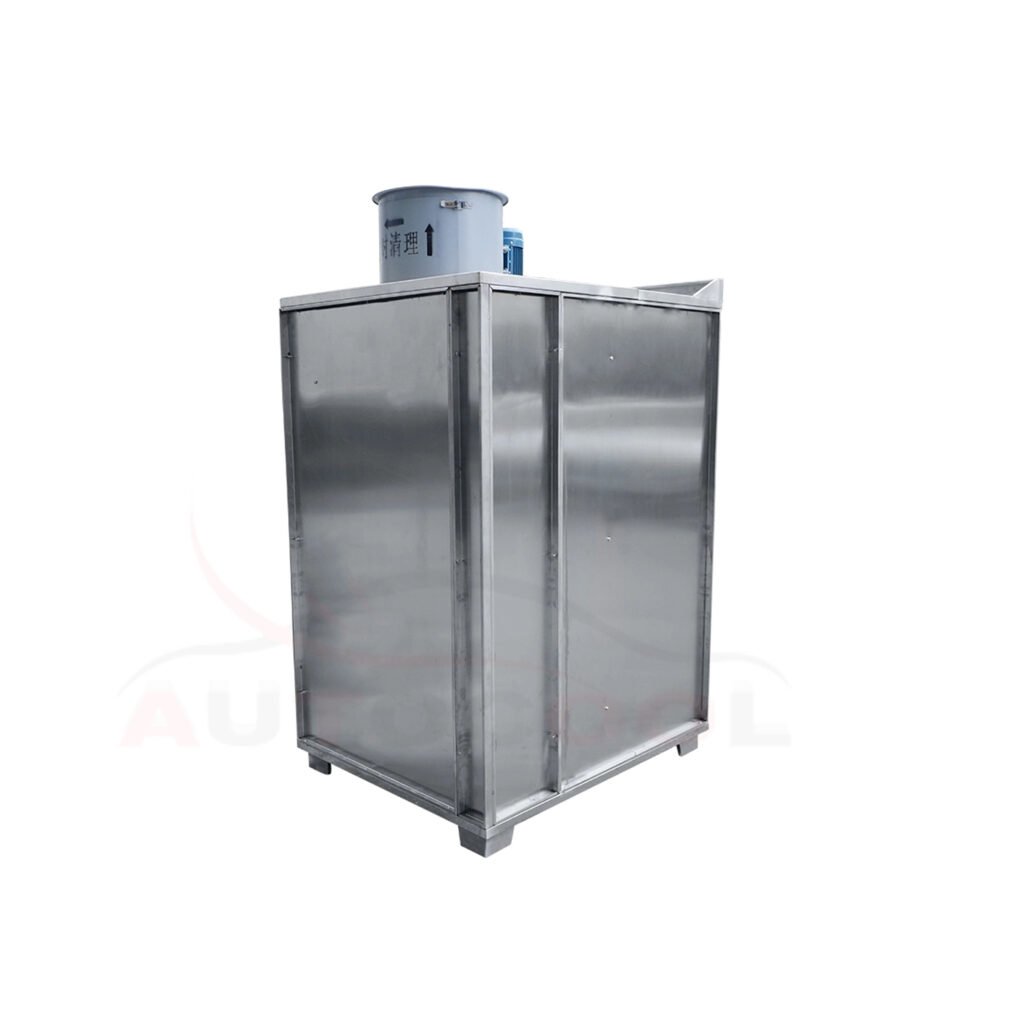

Dry Type Liquid Painting Room/ Liquid Painting Spray Booth
Dry Type Liquid Painting Room/ Liquid Painting Spray Booth provide an extremely efficient means for removing paint particles from the exhausted air, and are the most acceptable type of spray booth for all health, fire and building codes. Water wash spray booths are ideal when using large quantities of coatings.
Dry Type Liquid Painting Room/ Liquid Painting Spray Booth Feature
* Efficient Airborne Particulate Removal
* High-Volume Capture Efficiency
* Enhanced Impingement Technology
* Proven Designs
Size Information
Dry Type Liquid Painting Room/ Liquid Painting Spray Booth configurations
Model No | Width (mm) | Fan Motor (KW) | Fan Motor Air Flow (m3/h) | External size (L*W*H mm) | Weight (kgs) |
DPS-800 | 800 | 0.37 | 2880 | 3700*1500*2500 | 200 |
DPS-1000 | 1000 | 0.75 | 5500 | 3700*1500*2500 | 250 |
DPS-1200 | 1200 | 0.75 | 6500 | 1400*1500*2300 | 350 |
DPS-1500 | 1500 | 0.75 | 7000 | 1700*1500*2300 | 400 |
DPS-2000 | 2000 | 1.5 | 22000 | 2200*1500*2300 | 480 |
DPS-2500 | 2500 | 2.2 | 22000 | 2700*1500*2300 | 530 |
DPS-3000 | 3000 | 1.5*2 | 18000*2 | 3200*1500*2300 | 570 |
DPS-3500 | 3500 | 1.5*2 | 18000*2 | 3700*1500*2500 | 790 |
DPS-4000 | 4000 | 2.2*2 | 18000*2 | 4300*1500*2500 | 850 |
DPS-4500 | 4500 | 3.0*3 | 18000*3 | 4800*1500*2500 | 970 |
DPS-5000 | 5000 | 5.5*2 | 18000*2 | 5200*1500*2500 | 1040 |
DPS-5500 | 5500 | 5.5*2 | 18000*2 | 5700*1500*2500 | 1100 |
DPS-6000 | 6000 | 5.5*3 | 18000*3 | 6300*1500*2500 | 1170 |
