Product Features:

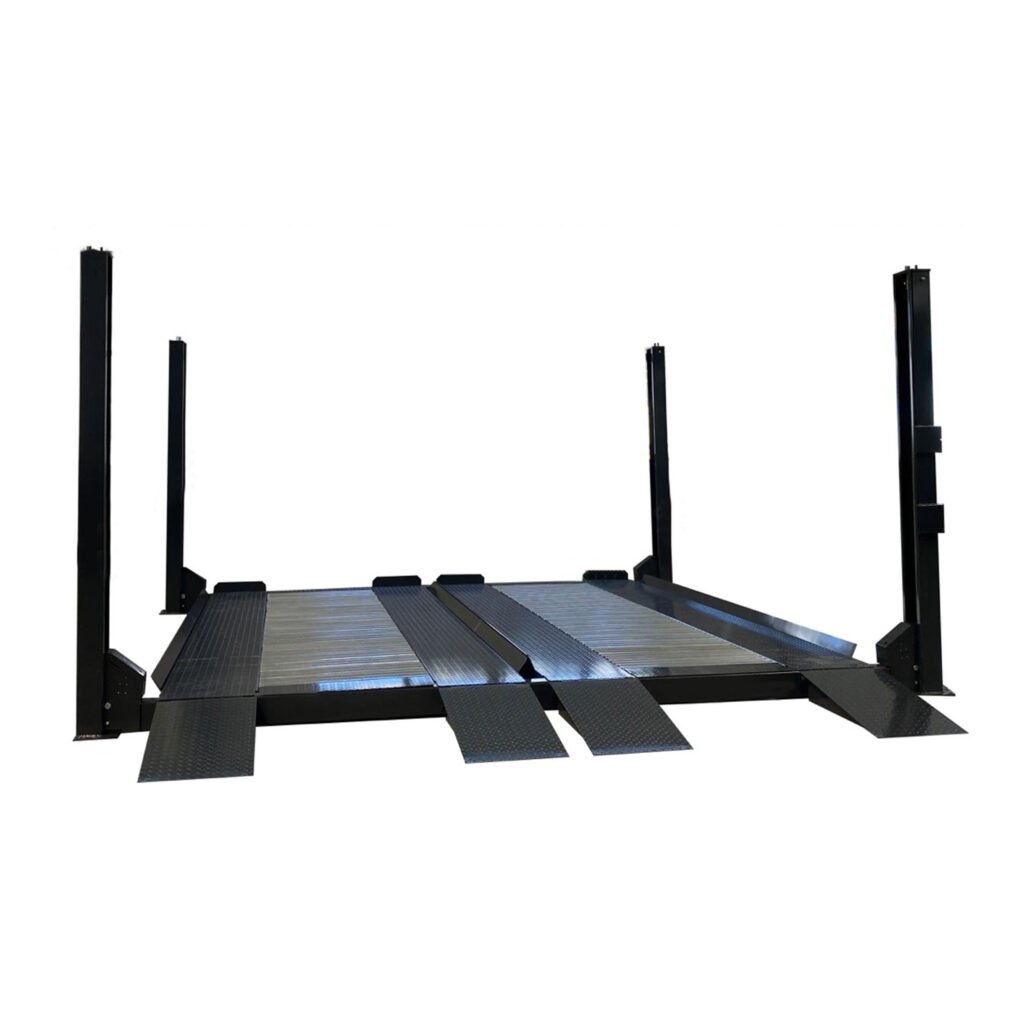

1. Offering space for 4 cars parking
2. Customized according to layout, Space & cost saving due to its compact design.
3. Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4. Hydraulic driven and steel rope lifting system.
5. Electric operation with operation panel.
6. Automatic locking system with electric lock release.
7. The whole sliding framework synchronous balance system.
8. Suitable for multi-vehicle parking & storage.
9. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
Product Parameter:
| Model | 4PFP-4000 |
| Lifting height（mm） | 2000 |
| Lifting capacity（kg） | 4000kg totally |
| Operation type | Electric panel |
| Lock release type | electric lock release |
| Safety devices | Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture |
| Driven mode | Hydraulic driven |
| Middle in the runway | Galvanized wave plates |
| space for cars | 4 cars |
| Motor capacity | 2.2kw |
