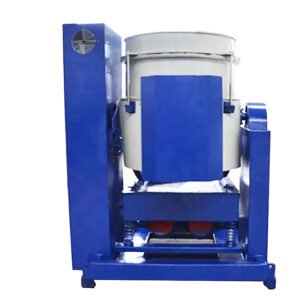

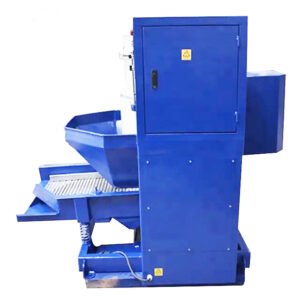

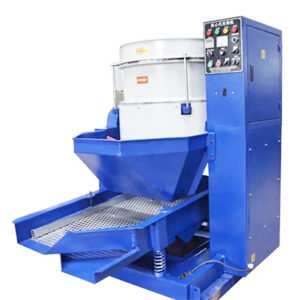

Centrifugal Disc Polishing Machine Automatic Unloading Inverter Control Speed

Centrifugal Disc Polishing Machine Automatic Unloading Inverter Control Speed

Belt Drive Directly; Inverter Control Speed; Automatic Unloading.

Applications: Surface treatment of rubber products, O-rings, seals, jewelry, precision parts, etc
1, High level model, Automatic unloading.
2, Belt drive;
3, Inverter Control Speed;

4, Separate function (Front side): Separated products, polishing media and polluted water at the same time, greatly improving production efficiency.
5, (Optional stainless steel gasket to reduce gaps, prevent product jams, and extend machine working life.)

Mass Finishing Machine

Description

Centrifugal Disc Polishing Machine Feature

1. Belt drive or motor direct drive optional.

2. Manual or automatic unloading optional.

3. Speed regulating motor or variable frequency speed regulating motor optional.

4. Optional stainless steel gasket to reduce gaps, prevent product jams and extend machine life.

5. Optional separate function to separate products, polishing media and polluted water at same time which can greatly improve production efficiency.

Product Paramenters:

Model	Capacity （L）	Size LWH（mm）	Drum Speed （rpm）	Power （kw）	Barrel Diameter (mm）	PU Thickness （mm）	Weight （Kg）
CDF-50	50	14008501200	0-220	1.5	480	20	400
CDF-120	120	17009501400	0-220	4	690	25	600
CDF-50B	50	11007501200	0-220	1.5	480	20	300
CDF120B	120	129010001570	0-220	4	690	25	500
CDF-120A	120	205011001570	0-220	4+1.1+0.18	690	25	1000
CDF-120C	120	120019501200	0-220	4+1.1+0.18	690	25	900
CDF230C	230	200019002060	0-160	7.5*2.2+0.36	1000	25	1500
