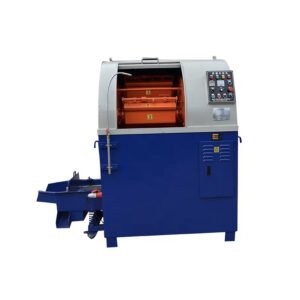

Centrifugal Polishing Machine With Separator Feature
1. Suitable for products with high hardness materials and high surface roughness requirements.
2. Transmission mode: chain, timing belt and gear.
3. Timing function.
4. There are 4 barrels in each machine. The barrels can be divided to process workpieces that are different types or easily bruised with each other.
5. Based on basic model, add water inlet function.
6. Based on basic model, add separating function to separate products, polishing media and wastewater which can greatly improve production efficiency.
7. Optional variable frequency speed regulation function (standard configuration is constant speed).
7. Optional variable frequency speed regulation function (standard configuration is constant speed).
8. Optional brake motor for automatic braking (standard brake is manual brake).
9. Optional tilting barrel can improve working efficiency (standard configuration is that the barrel is placed horizontally).
9. Optional tilting barrel can improve working efficiency (standard configuration is that the barrel is placed horizontally).
Model | Capacity （L） | Size L*W*H（mm） | Drum Speed （rpm） | Power （kw） | Barrel Net Size A*B*C (mm) | Weight （kg） |
PCV-40A | 4*10 | 1600*1100*1700 | 0-180 | 2.2+0.37+0.18 | 280*105*105 | 800 |
PCV-60A | 4*15 | 1650*1300*1830 | 0-150 | 4.0+0.37+0.18 | 15-20 | 1000 |
PCV-80A | 4*20 | 1850*1450*1900 | 0-140 | 5.5+0.75+0.18 | 15-20 | 1200 |
PCV-120A | 4*30 | 2000*1650*2000 | 0-130 | 5.5+0.75+0.18 | 15-20 | 1500 |
PCV-200A | 4*50 | 2200*1800*2100 | 0-120 | 7.5+2.2+0.18 | 15-20 | 1800 |
Application
CNC machined parts, electronic products, jewelry, precision parts, daily hardware and other small size parts
