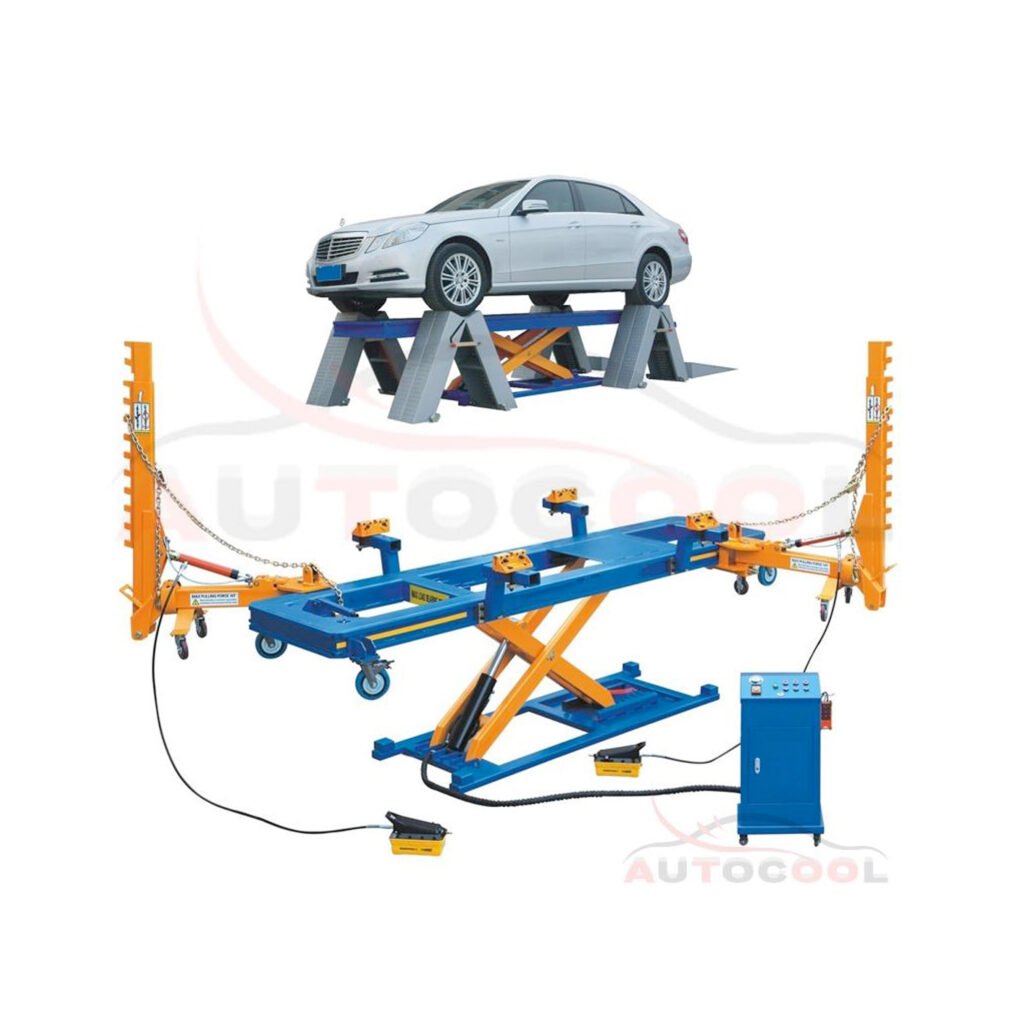

European frame type beam correction instrument frame machine
| Model Number | CBE-60 | ||
| Length | 4160mm | Width | 900mm |
| Height | 260-1600mm | Air Supply Required | 0.8Mpa |
| Hydraulic Power | 70Mpa | Power pulling capacity | 95KN |
| Range of pulling | 360° | Weight | 2000KG |
| Maximum load | 3500KG |
Features:
1.European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by electronic hydraulic pump, the
lifting frame is operated conveniently and quickly.

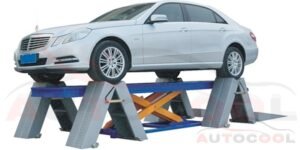

2. The vertical lifting frame can be used as a scissor lift, orientated safely at height from 260mm to 1600mm.
3. Frame basement can be put up, four wheels can be moveable. After fixing vehicle to frame, move them together to specified position, which can make up
insufficient space and unfixing.
4. Ramps with patient for driving vehicle on quickly and conveniently are widely used for holding wheels, which helps clamp vehicle needed to repair.
5. Two flexible moving pulling towers can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
6. Forged, modulated and heated by frequency, the metal sheets has high intensity and long life, any deformation correction is considered.
7. Main clamp jaw with patient can fix auto body, main clamp and cross-beam together with one screw. Scientific design, firm fixing and quick operation
improve working efficiency greatly, ABB clamps optional.
