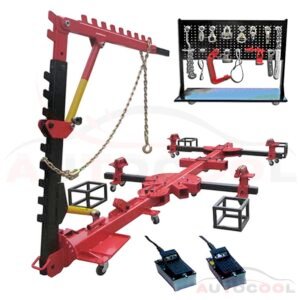

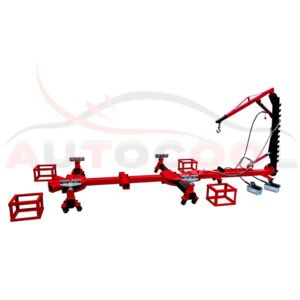

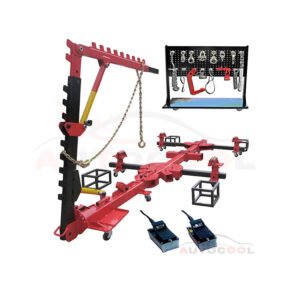

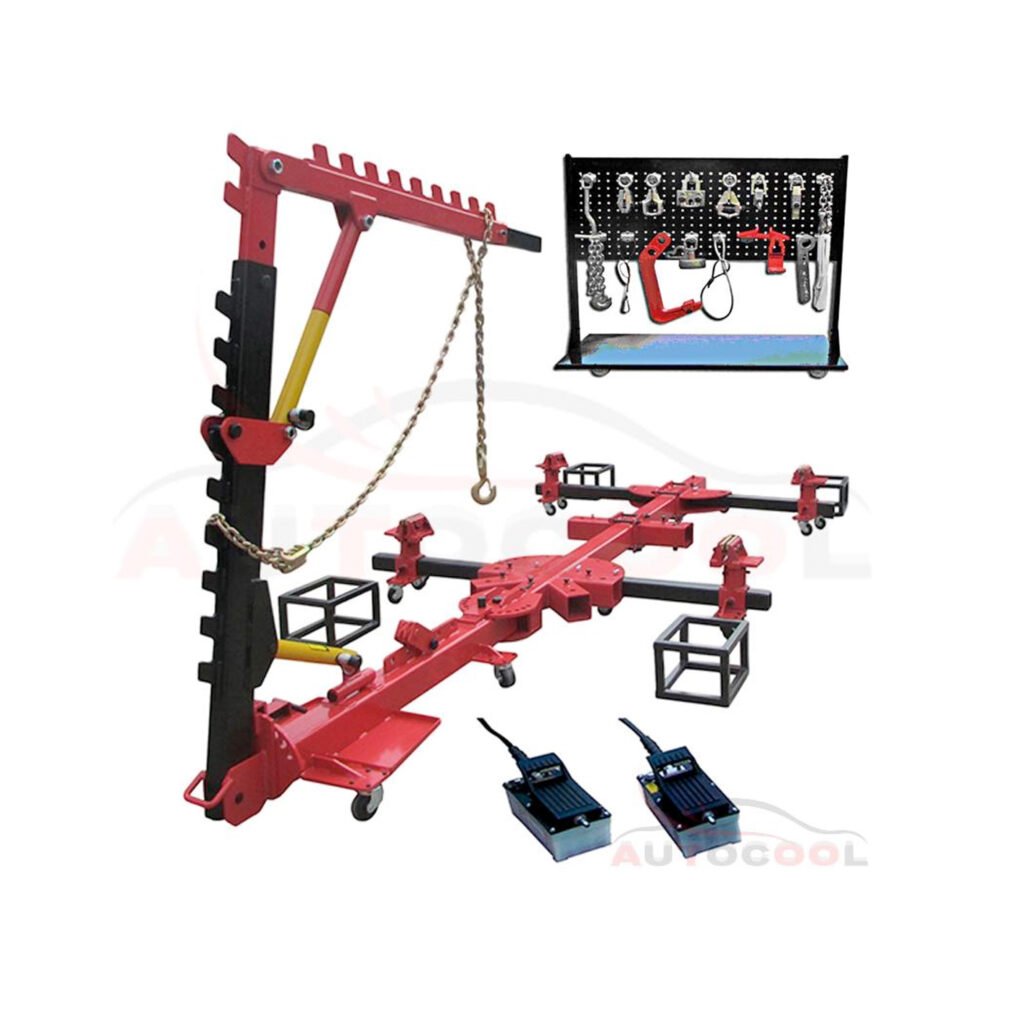

CBE-30 Auto Frame Straightener

  • Auto Body collision repair machine
  • Worktable Length: 3500mm
  • Worktable Width: 2000mm
  • Bench Height: 220mm
  • Max. Lifting Capacity: 3.5T
  • Product description: Auto Frame Straightener body dent puller, very popular in the world market!! Standard equip single tower, the double towers type optional.

Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

Auto Frame Straightener body dent puller Auto Body collision repair machine

Model NumberCBE-30
Length4200mmRange of pulling360°
Width2000mmAir supply0.8Mpa
Height220mmPackage size310*83*63cm
Power pulling capacity98KNGross weight850kgs

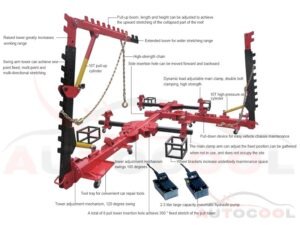

Features:

  1. Completely mobile, use it in the shop, parking lot,wherever pulls are needed.
  2. 5-ton pulling system with 10 ton hydraulics.
  3. Full 360 degree swivel for side, front & rear pulling.
  4. Post swivels 90 degrees for extended reach.
  5. Multiple position set-ups allow for all kinds of pulls.
  6. Secure four point clamping system, more firm.
  7. Includes down-pull and up-pull attachment.
  8. No tie downs or anchor pots needed.
  9. Fast, easy one man set-up.
  10. Includes two hydraulic cylinder and foot pump.
  11. With four stands. The second tower optional, standard equip one tower.
