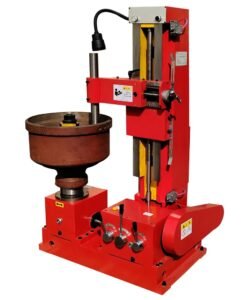

TC8365A brake drum boring machine is mainly used for all kinds of vehicle brake drum and brake shoe repair, suitable for auto
repair shops, bus companies, automobile transportation companies and large enterprise transportation department maintenance
vehicles. 1, the tool rest is close to the workpiece quickly, with micro feed to make the operation more convenient.
2, positive and negative knife, fast lifting, improve production efficiency.
3, super spindle structure design, so that the elliptical deformation, surface hardening brake drum can also be processed.
4. The skateboard can be lifted manually.
5. Hand wheel on the right side makes shifting more convenient.
Product Paramenters
Main Specifications | TC8365A |
Max.boring Diameter mm | 650 |
Range of boring diamrter mm | 200-650 |
Max. disc diameter mm | 560 |
Vertical travel of toolpost mm | 350 |
Spindle Speed r/min | 25 / 45 / 80 |
Feeding rate mm/r | 0.16 / 0.25 / 0.40 |
Cross feed of tool post mm/r | 0.12 |
Vertical moving speed of tool post | 490 |
Motor Power kw | 1.5 / 0.55 |
Overall Dimensions(L x W x H) mm | 1140 x 900 x 1600 |
Weight kg | 960 |
