• Inner size: Width1400*Depth1000*Heght1800mm
  • Outer size: Width2500*Depth1500*Heght2300mm
  • Power Supply: 220V/380V, 3Phase, 50-60HZ
  • Fan Power: 3.5 Kw
  • Product description: Double-purpose Powder Spray Booth, This industrial powder spray booth designed with side doors alternatively to keep open or closed, achieve multi-purpose powder coating.

Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

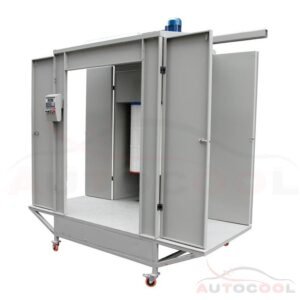

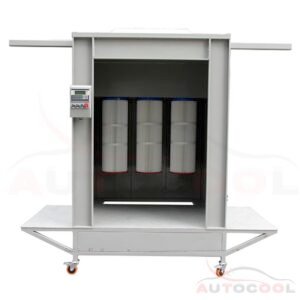

Double-purpose Hanging Type Powder Coating Booth PCBM-2152

PCBM-2152 industrial powder spray booth designed with side doors to achieve multi-purpose powder coating. Closing the side doors while spraying small parts will create a cleaner work condition and increase powder recovery. Opening side doors allows to contain and coat larger parts. Dual-use spray booth is an economical selection to start new business that enhancs practicability and flexibility.



PCBM-2152 Idustrial Powder Coating Booth Features

1. Powder spray booth body made of coated steel plate is durable and corrosion-resistant.
2. Quick-release type cartridge filters supports frequent color change with easy operation
3. A user-friendly PLC panel integrates all functions, such turning on / off fans, setting pulse-jetting time and interval, light on/off, recovery hopper lifting, emergency stop etc.
4. Pulse-jetting system regularly remove powder accumulation on filters for next better collection.
5. Removed powders from filters are dropped into a collect hopper designed removable.

Tunnel Powder Coating Booth Specifications:

ModelPCBM-2152
Operating DimensionsWidth1400*Depth1000*Heght1800mm
Overall dimensionsWidth2500*Depth1500*Heght2300mm
Weight450kg
Power Supply220V/380V, 3Phase, 50-60HZ
Fan Power3.5kw
Filter Count3 pcs, Quick-release Type
Filter MaterialPolyester
Filter CleaningPneumatic
