Product Description

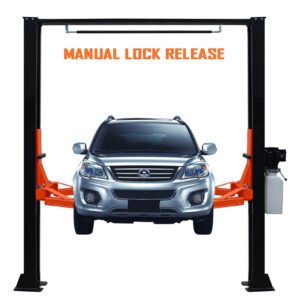

Electro-Hydraulic 2 Post Lift Clear Floor Plate Type, Manual Single Side Lock Release with CE.
Features:
- 1. Manual lock release from single side,more convenient for operation .
- 2. Automatic arm restraints,lifting arm automatically engages when lift is raised,
- and disengaged when lift lowered to the ground.
- 3. 3-stage Screw-up pads suitable for low chassis vehicle and makes easy and quick service.
- 4. Parachute valve that equipped in hydraulic joint ensures safety in case of oil hose broken.
- 5. Door opening protection rubber as standard.
- 6. Top limits switch on overhead bar prevent damaging vehicle roof.
- 7. Chain guard protects the cylinder and makes lift in good appearance.
- 8. Chain protection curtain as CE standard.
- 9. Foot guard as CE standard.
Specification: | |
Lifting capacity: | 3500kg/4000kg/4500kg/5000kg |
Lifting height: | 1880mm |
Height of post: | 3724mm |
Width between post: | 2830mm |
Mount width: | 3380mm |
Min height: | 115mm |
Lifting time: | <50s |
Lowering time: | <40s |
Motor power: | 3kw |
Power supply: | 220V/240V/380V/415V |
