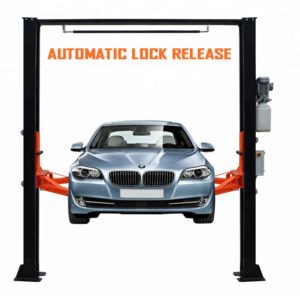

2PL-4000E Car Lift

  • Lifting capacity: 3500/4000/5000kg
  • Lifting height: 1900mm
  • Power Supply: 220v/380v
  • Product description: Electro-Hydraulic electric lock release two Post Lift Clear Floor Type,Automatic Lock Release with CE. Automatic Lock Release,only press Up and Down button for operation. Automatic arm restraints.

Get quotes

Send your requirements, we will quote for you within 24 hours.

  • Call

    +86 13295357231

  • Email

    info@ytperfectmachinery.com

Product Description

Electro-Hydraulic 2 Post Lift Clear Floor Type, Automatic Lock Release with CE.

Features:

  • Automatic Lock Release,only press Up and Down button for operation.
  • Automatic arm restraints,lifting arm automatically engages when lift is raised,and disengaged when lift lowered to the ground.
  • 3-stage Screw-up pads suitable for low chassis vehicle and makes easy and quick service.
  • Parachute valve equipped in hydraulic joint ensures safety in case of oil hose broken.
  • Door opening protection rubber as standard.
  • Top limit switch on overhead bar prevent damaging vehicle roof.
  • Chain guard protects the cylinder and makes lift in good appearance.
  • Foot guard as export standard.
Specification:
Lifting capacity3500kg/4000kg/4500kg/5000kg
Lifting height1900mm
Min height100mm
Lifting time<50s
Motor power2.2kw
Mount width3380mm
Height of post3724mm
Width between post2830mm
Lowering time<40s
Power supply220v/240v/380v/415v
